Miniature Bearings Australia
PUI032-0254-048-ZB - Datasheet
MBA
Category Information

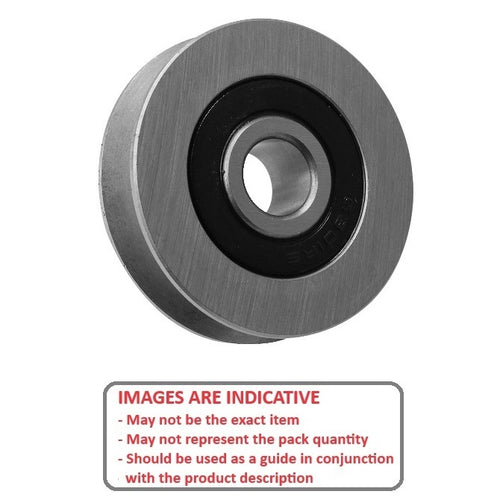

Pulleys - U Groove Idler - Single Row - SteelSteel Single Row U Groove Idler Pulleys. Steel with Steel Ball Bearings
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks

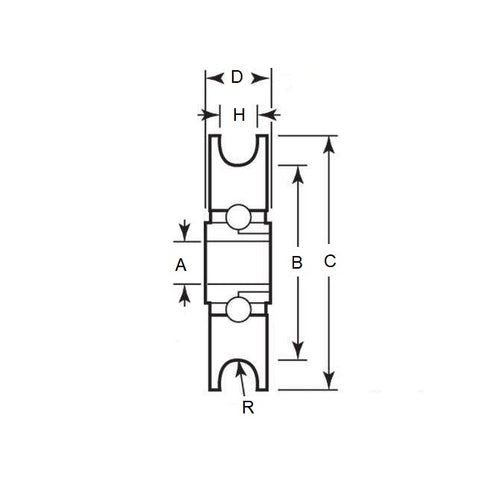

Product Data
- Maximum Cable Diameter (H) : 3.18 mm
- Outside Diameter (OD) 25.40 mm
- Bore (A) 4.763 mm
- Body Width 7.94 mm
- Overall Width (OAL) 9.53
- Dia. to Base of Groove (B) 19.05 mm
- Type Unground Open Ball Bearing - Hardened Raceway - Heavy Duty
- Groove Radius (R) 1.57
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CBL-920
- CBL920
