RP032-0191-420 - Datasheet
Brighton Best
Category Information

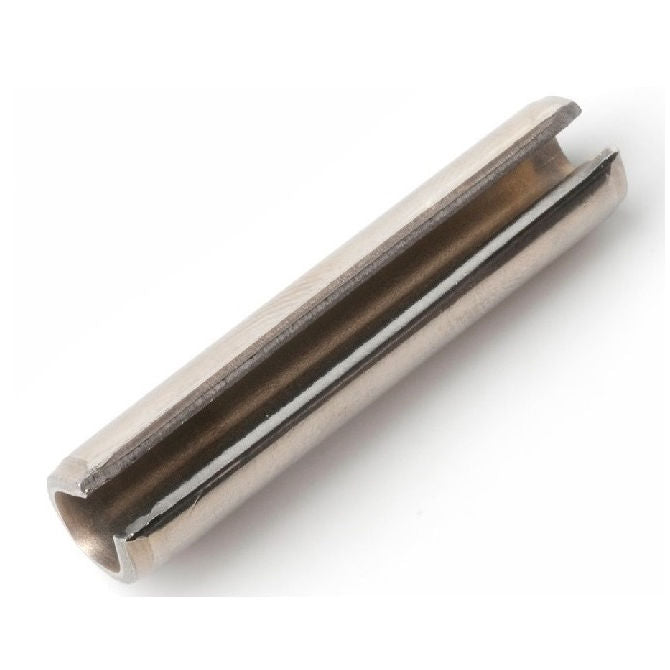

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
3.18
mm
(Equiv. 0.125 in.) - Length (L)
19.10
mm
(Equiv. 0.752 in.) - Free Diameter
3.50
mm
(Equiv. 0.138 in.) - Thickness (S) 0.71 mm
- Chamfer Length (cL) 0.20-1.12 mm
- Chamfer Diameter (cD) 3.1 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 803069
- 92383A967
- Small Parts DWX-2-12
- NoCor SPS420-125-0752-420SS
- NoCor SPSP-125-0752-420SS
- DWX212
- P-165
- P165
- SPSP1250752420SS
- SPS4201250752420SS
- A9Y350424
- A9Y35-0424
