MAG-D-03-006-NS - Datasheet
MBA
Category Information

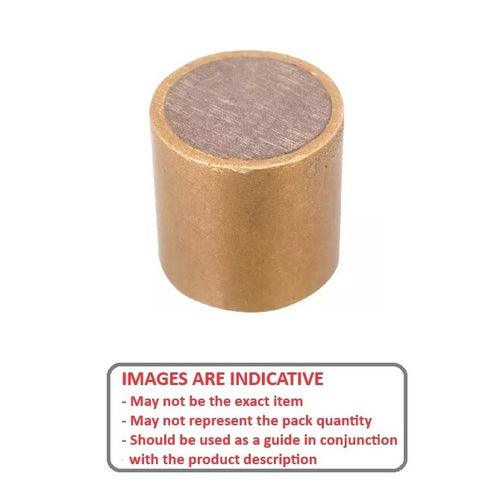

Magnets - Rare Earth - ShieldedShielded Rare Earth Magnets. Insulator shield prevents loss of magnetic flux when inserted into steel components or fixtures
- Shielded magnets supply holding forces in limited areas of steel tools, dies and fixtures
Product Data

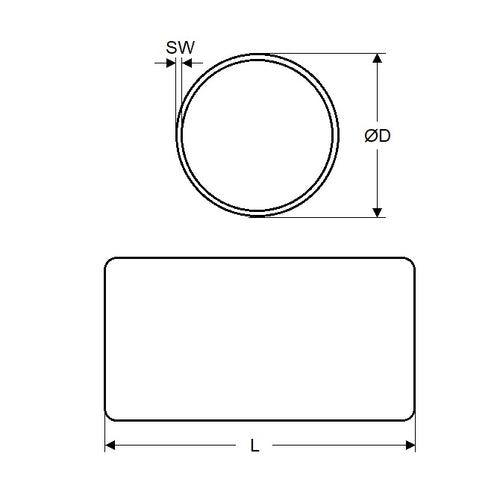

- Diameter
:
3.18
mm
+ 0.0 / - 0.13
(Equiv. 0.125 in.) - Length
6.35
mm
+ 0.0 / - 0.381
(Equiv. 0.25 in.) - Side Wall Thickness
0.05
mm
(Equiv. 0.002 in.) - Max Pull 0.09 kg
Product Compliance and Data
Additional Resources
Cross References
- IM-27
- IM27
