ECL-0024-0032B-C - Datasheet
MBA
Category Information

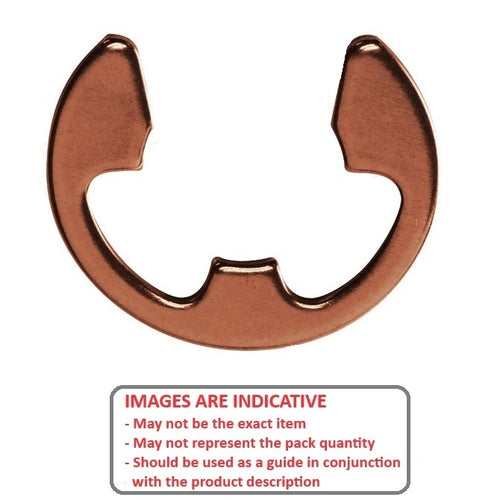

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
3.18
mm
+ 1.02 / - 0.00
(Equiv. 0.125 in.) - Groove Dia. (Dg)
2.41
mm
+ 0.051 / - 0.000
(Equiv. 0.095 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 5.43 mm
- Groove Width (W) 0.61 mm
- Maximum Rec. Shaft Dia (S) 4.20
- Clip OD in groove (C1) 6.10 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- B1500B095APP
- B1500-B095APP
- B1500A095
- B1500-A095
- B1500A095APP
- B1500-A095APP
