ECB-0024-0032-S15 - Datasheet
MBA
Category Information

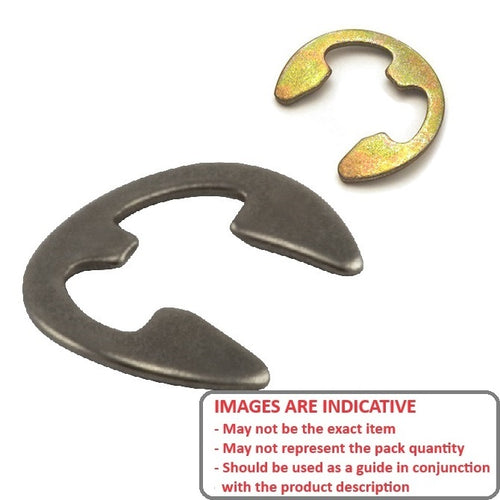

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.

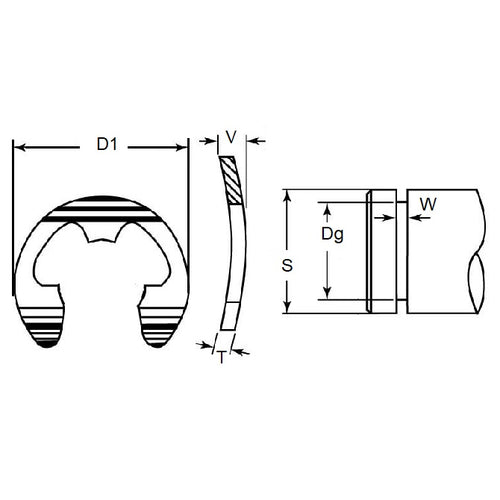

Product Data
- Minimum Rec. Shaft Dia (S)
:
3.18
mm
(Equiv. 0.125 in.) - Groove Dia. (Dg)
2.41
mm
+ 0.051 / - 0.000
(Equiv. 0.095 in.) - Clip Thickness (T)
0.25
mm
+/ - 0.025
(Equiv. 0.01 in.) - Clip OD Loose (D1) 5.84 mm
- Groove Width (W) 0.56 mm
- Ring Width (X) 0.64 mm
- Force Required to Flatten 3.6 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N1501-0012KSF
- N15010012KSF
- S73KW2-131-12
- S73KW213112
