RP032-0159-420 - Datasheet

Brighton Best

Category Information

Pins - Roll - Stainless Steel - 420 Grade

420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

  • Nominal Diameter (D) : 3.18 mm
    (Equiv. 0.125 in.)
  • Length (L) 15.90 mm
    (Equiv. 0.626 in.)
  • Free Diameter 3.50 mm
    (Equiv. 0.138 in.)
  • Thickness (S) 0.71 mm
  • Chamfer Length (cL) 0.20-1.12 mm
  • Chamfer Diameter (cD) 3.1 mm
  • Standard DIN1481 / ISO8752
  • Type Standard
  • Material Stainless Steel AISI 420C Rc 46-52
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best 803067
  • 92383A695
  • Small Parts DWX-2-10
  • NoCor SPS420-125-0626-420SS
  • NoCor SPSP-125-0626-420SS
  • DWX210
  • SPS4201250626420SS
  • SPSP1250626420SS
  • A9Y350420
  • A9Y35-0420
View full details

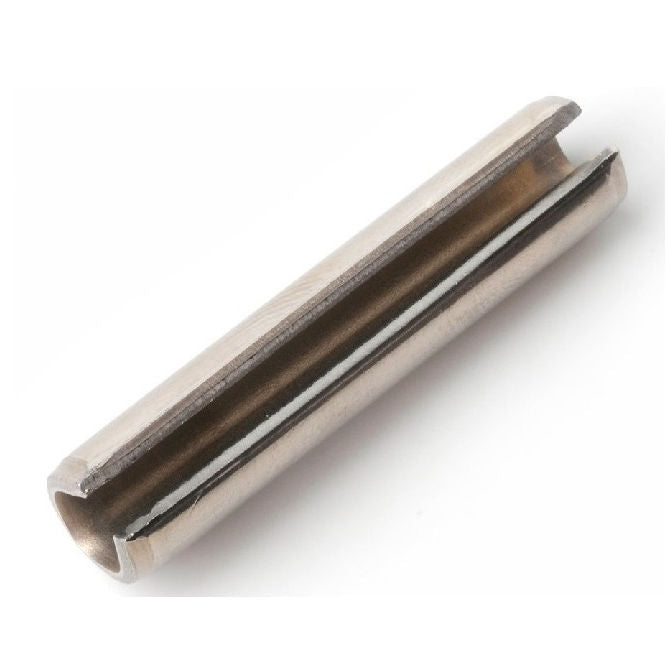

RP032-0159-420DiagramRP032-0159-420Image
