COL-00318-010-06-CBO - Datasheet
MBA
Category Information

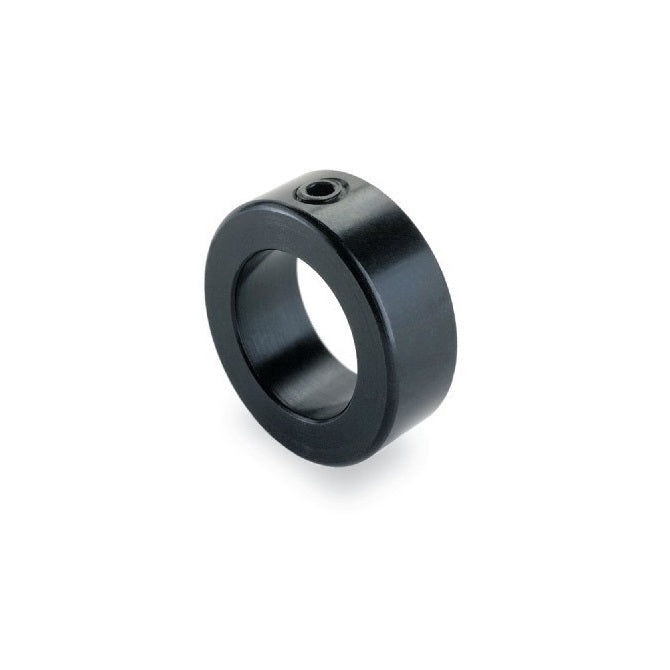

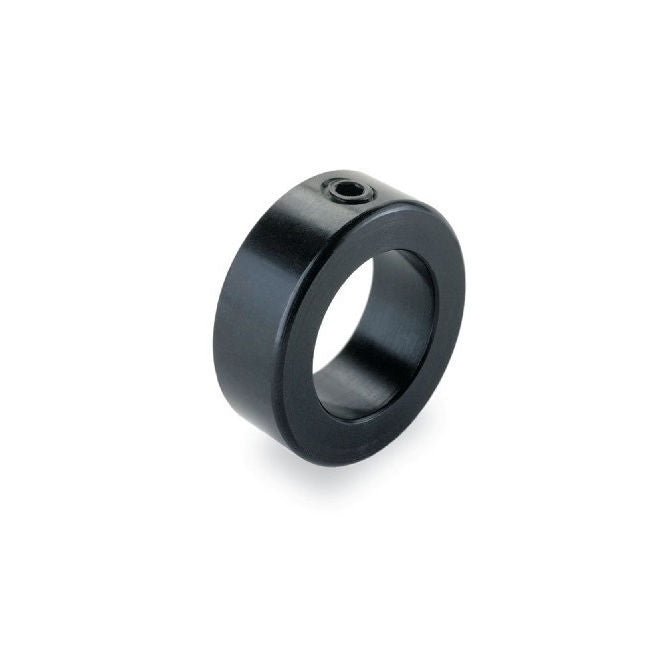

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
3.175
mm
(Equiv. 0.125 in.) - Outside Diameter (D)
9.53
mm
(Equiv. 0.375 in.) - Overall Width (S)
6.4
mm
(Equiv. 0.252 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- 9414T3
- NoCor SC-0125-BO
- SC0125BO
