COL-00318-010-06-S4 - Datasheet
MBA
Category Information

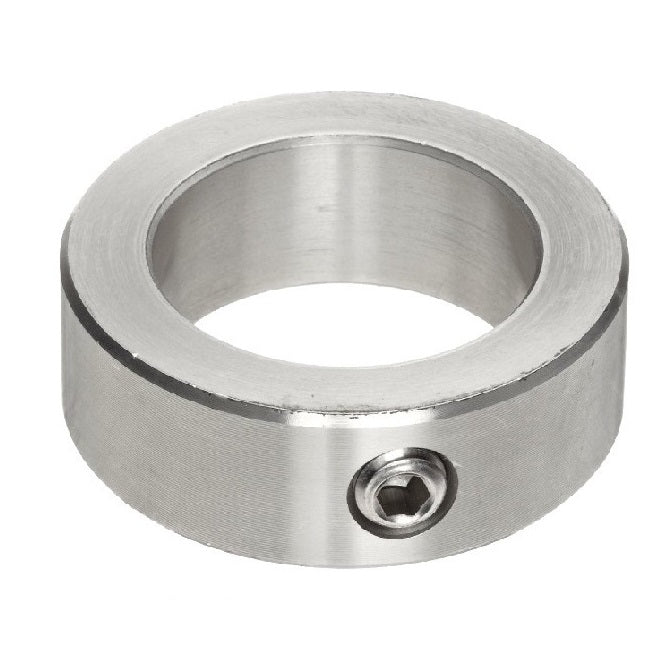

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
3.175
mm
(Equiv. 0.125 in.) - Outside Diameter (D)
9.53
mm
(Equiv. 0.375 in.) - Overall Width (S)
6.4
mm
(Equiv. 0.252 in.) - Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor SC-0125-SS
- SC0125SS
