SWR2-5-MC34-GR5-R-L23 - Datasheet
Myonic
Category Information
Bearings - Single Row Ball - Unflanged - High Precision - Extended InnerExtended Inner High Precision Unflanged Single Row Ball Bearings. Stainless Steel Bearings - Abec 5 and Abec 7. Single row radial ball bearings with extended inner ring (wide inner ring).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
- High precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).
Product Data

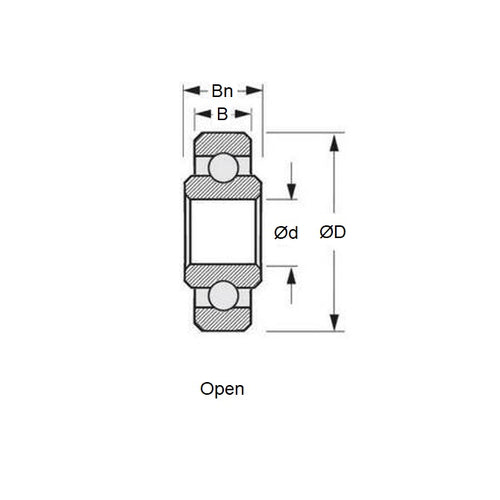

- ID (d)
:
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.) - OD (D)
7.938
mm
+ 0.000 / - 0.005
(Equiv. 0.313 in.) - Width (B)
2.779
mm
+ 0.000 / - 0.040
(Equiv. 0.109 in.) - Inner Ring Width (Bn) 3.571 mm
- Precision Grade Abec 5
- Closure Type Open
- Bearing Type Radial with Extended Inner
- Lubricant Windsorlube L245X - L23 Oil
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part WR2-5
- Limiting Speed 80400
- Cage Type Ribbon
- Static Load Rating KGf 18
- Dynamic Load Rating KGf 57
- Radii 0.10 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 6.70 mm
- Number of Balls 6
- Clearance MC34 (5 to 10)
- Precision Grade Abec 5
- Closure Type Open
- Max Temperature 170 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- MPB 518CE
- MPB 518RE
- GRW E1-8A
- GRW E1-8A-P5
- GRW E1-8A-P6
- ADR LX1-8
- Similar Part LX1-8
- NHBB R1-518EE
- NHBB R2-5EE
- FAG RE820
- Similar Part RE820
- MPB S518CE
- MPB S518RE
- GRW SE1-8A
- GRW SE1-8A-P5
- GRW SE1-8A-P6
- NHBB SSR1-518EE
- NHBB SSR2-5EE
- ADR WLX1-8
- Similar Part WLX1-8
- R25EE
- P6-RW2-5
- P6-SRW2-5
- P6RW25
- P6SRW25
- P5-RW2-5
- P5RW25
- P5-SRW2-5
- P5SRW25
- WLX18
- WR2-5
- WR25
- SWR25RGR5MC34L23
- SWR25MC3GR5L23
- SS-R1-518EE
- SSR25EE
- SSR1518EE
- DDR1518EE
- DDR1-518EE
- DD-R1-518EE
- RU4010X
- RU4010X48A5P6/15L23
- RU4010X-A5P-L23
- RU4010XA5PL23
- RU-4010X-48-A5P-6/15-L23
- SE18AP5
- SE18AP6
- WR2-5 Basic Size Ref
