Miniature Bearings Australia
BL-00318-ZR-G25 - Datasheet
MBA
Category Information

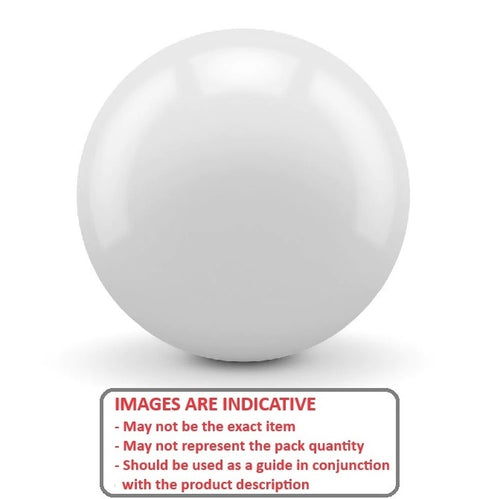

Balls - Ceramic - ZirconiaZirconia Ceramic Balls. Outstanding wear resistance. Excellent thermal and chemical resistance.
- Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
- General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
- For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
- Grades shown are AFBMA and ISO3290-1.
Product Data
- Diameter (D)
:
3.175
mm
+/- 0.00254
(Equiv. 0.125 in.) - Material ZRO2
- Precision AFBMA Grade 25
- Hardness 1300 kg/mm.sq
- Properties Good wear resistance and thermal resistance
- Colour Off White
- Specific Gravity 6.02
- Ovality +/-0.000635
- Material ZRO2
Product Compliance and Data
Additional Resources
Cross References
- ICB10
- ICB-10
