SHLD032-010-SL-P-S3 - Datasheet

MBA

Product Data

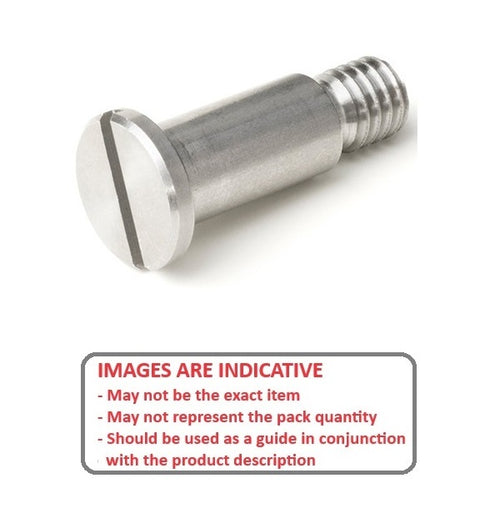

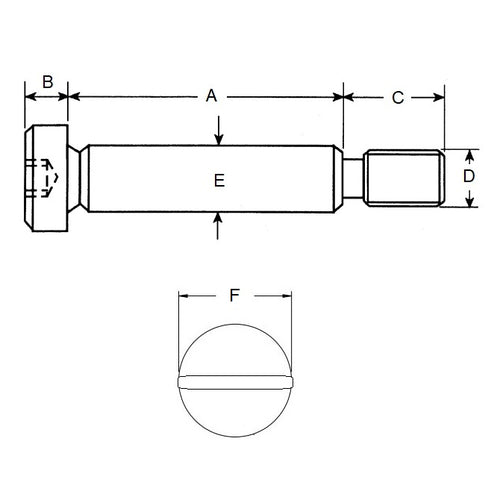

• Shoulder Diameter (E) : 3.175 mm _{- 0.013 / - 0.038}
  (Equiv. 0.125 in.)
• Shoulder Length (A) 9.600 mm
  (Equiv. 0.378 in.)
• Thread (D) 4-40 UNC
• Max. Thread Length (S) 3.96 mm
• Head Height (H) 3.18 mm
• Head Diameter (D) 6.35 mm
• Drive Type Slotted Drive
• Thread Type Class 3A Thread
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
