VD-4RS - Datasheet

MBA

Category Information

Plungers - Ball Buttons

Ball Buttons Plungers. Also known as striker bushings or ball plunger detents. Use with ball or bolt spring plungers for a hard wearing contact area.

  • Burnished ground hardened steel.

Product Data

  • Suitable Ball Diameter (d) : 3.175 mm
  • Diameter (D) 5.166 mm
  • Length (L) 6.350 mm
  • Hole Diameter (d1) 2.819
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33545A23
    View full details

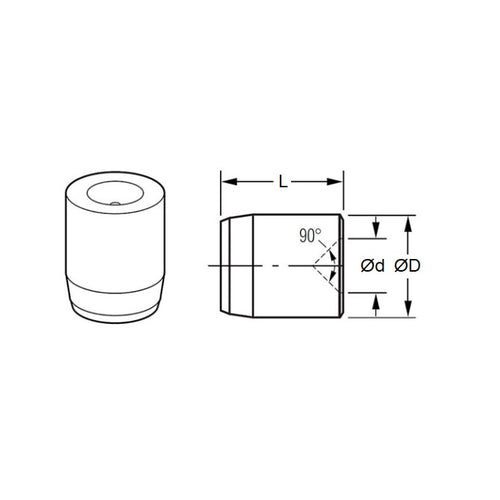

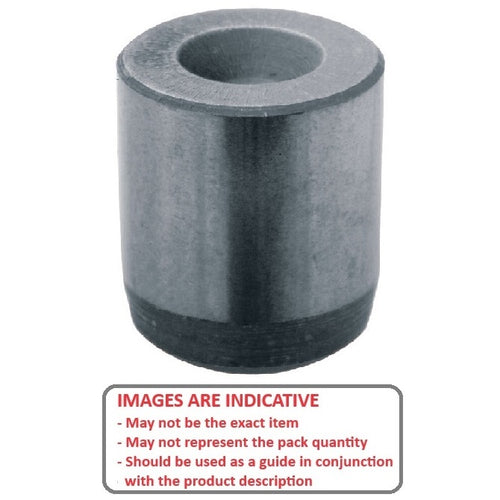

    VD-4RSDiagramVD-4RSImage
