SC048W-076-P-PH-CZ - Datasheet
MBA
Category Information

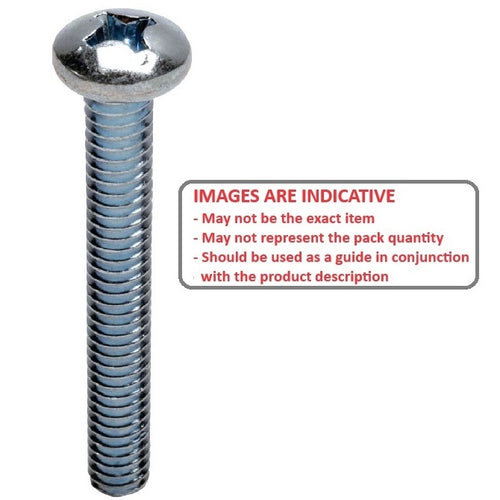

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 3/16-24 BSW (4.76mm)
- Thread Length (L)
76.2
mm
(Equiv. 3 in.) - Material Zinc Plated Steel
- Max Head Diameter 9.5 mm
- Max Head Height 2.8 mm
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSPPZP3163
