SC048W-064-R-SL-CZ - Datasheet
MBA
Category Information

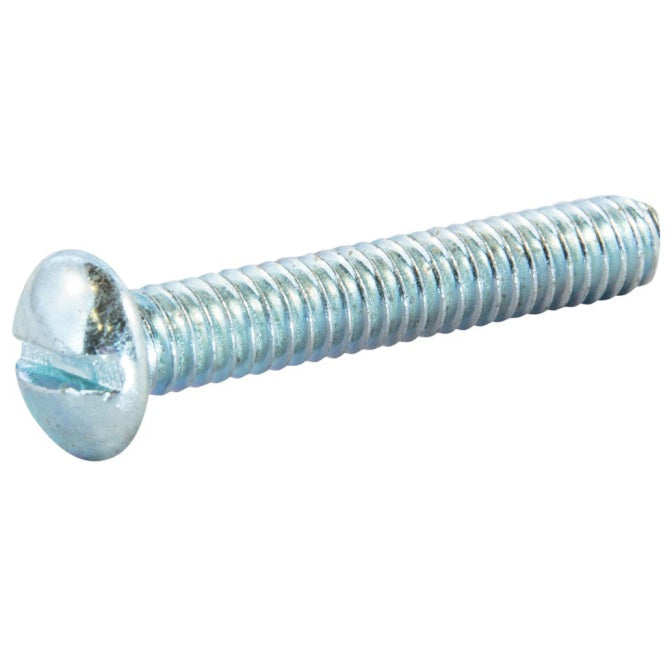

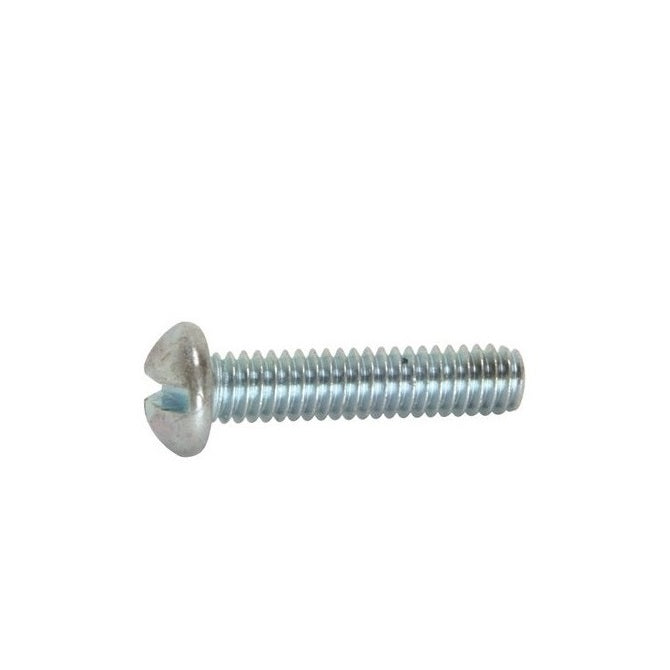

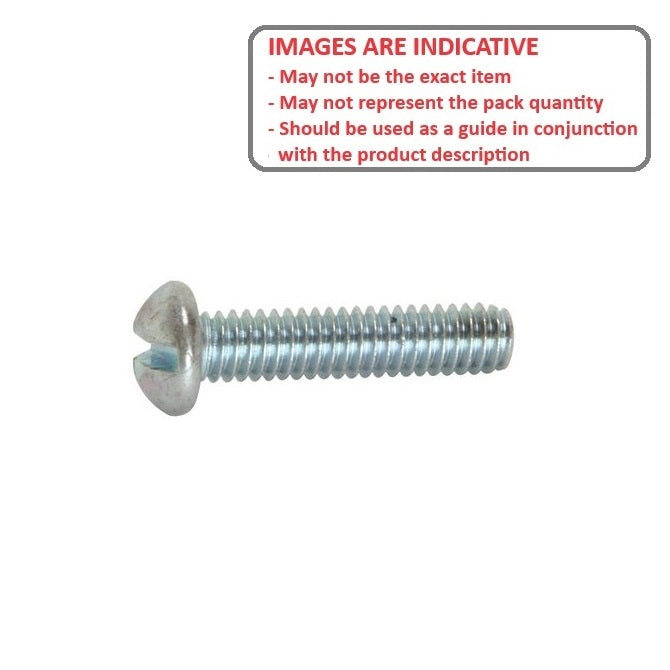

Screws - Round Head - Steel - SlottedSlotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

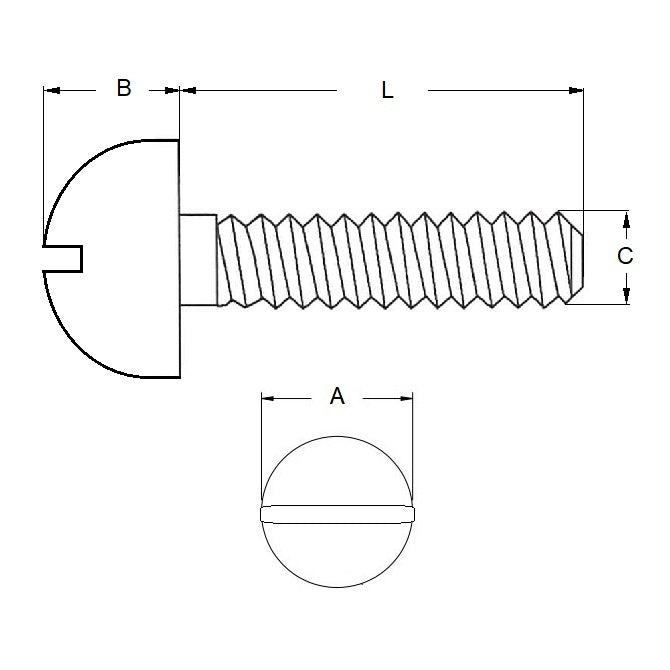

- Thread Size (C) : 3/16-24 BSW (4.76mm)
- Thread Length (L)
63.5
mm
(Equiv. 2.5 in.) - Material Zinc Plated Steel
- Max Head Diameter 9.12 mm
- Max Head Height 3.48 mm
- Type Round / Slotted
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSRSZP316212
