SC048W-025-B-SK-C - Datasheet
Brighton Best
Category Information

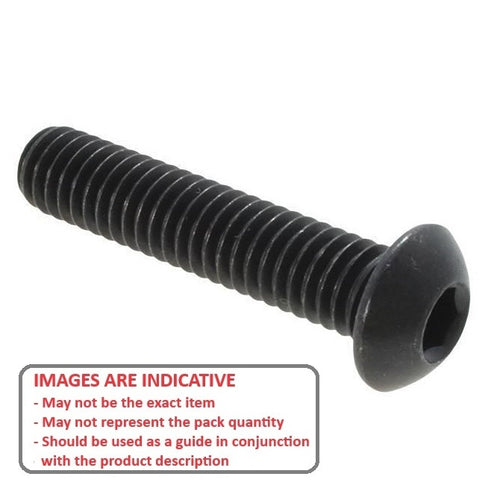

Screws - Button - Socket - Alloy SteelAlloy Steel Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data

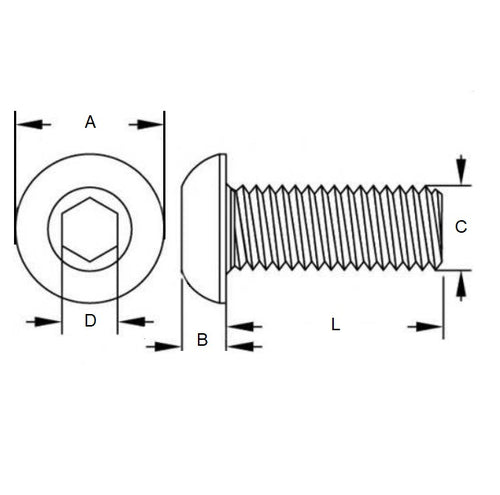

- Thread Size (C) : 3/16-24 BSW (4.76mm)
- Thread Length (L)
25.4
mm
(Equiv. 1 in.) - Material Alloy Steel
- Max Head Diameter 9.2 mm
- Max Head Height 2.6 mm
- Hex Key (D) 3.97 (5/32) mm
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 817065
