DVT3-1543-HSH - Datasheet
MBA
Category Information

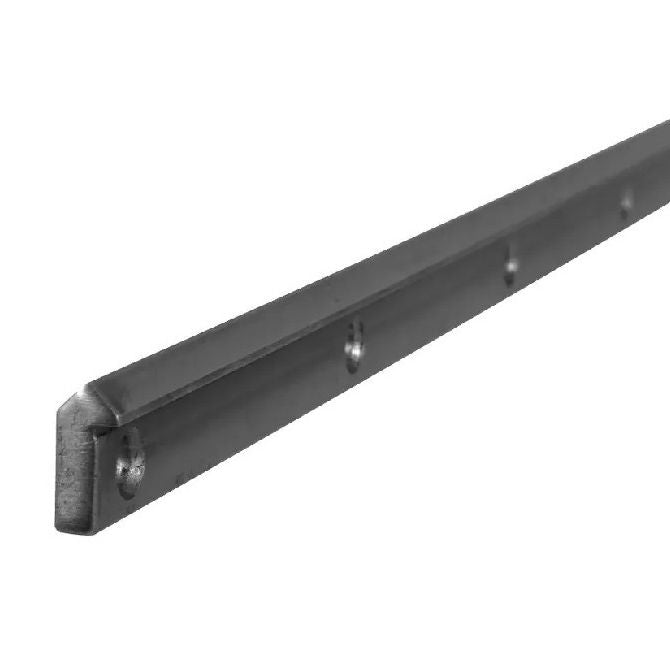

Dual Vee - Tracks - Stainless SteelStainless Steel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.
- Match Track Size with same size Guide Wheel.
Product Data
- Track Size : 3
- Overall Length (L)
1543.1
mm
(Equiv. 60.752 in.) - Overall Width (F)
8.71
mm
(Equiv. 0.343 in.) - Height (E / MDT) 22.22 / 6.35 mm
- Type Single Edged
- Hole Spacing (C) 76.2 mm
- Number of Holes 21 (7.14mm)
- End Hole Spacing (B) 9.65 mm
- Condition Hardened Rc 48-50
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- WZ-68
- WZ68
- A7W1536075
- A7W15M36075
- A7W15-36075
