MAG-BK-03-13-025-C - Datasheet
MBA
Category Information

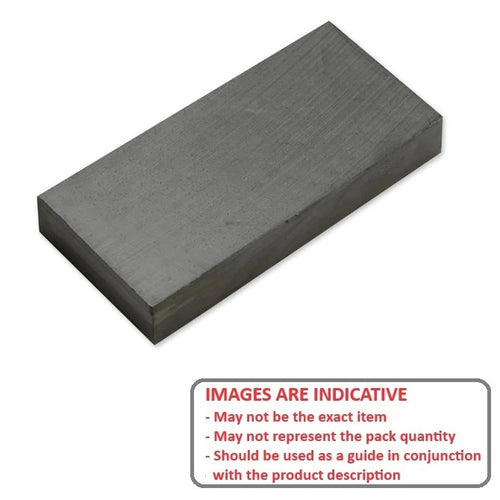

Magnets - Blocks CeramicBlocks Ceramic Magnets. Low cost, light weight, high energy material
- Non conductive hard brittle material
- Performs best at temperatures below 249 oC
- Can be cut with a diamond wheel
- Difficult to grind and can't be machined or drilled by normal methods
- Tolerance 0.13mm on all dimensions
Product Data
- Pull : 3.12 kg
- Thickness
12.7
mm
(Equiv. 0.5 in.) - Width
25.4
mm
(Equiv. 1 in.) - Length 50.8 mm
- Weight 0.07 kg
Product Compliance and Data
Additional Resources
Cross References
- IM469
- IM-469
