CS-0305-0097-04-S2-G - Datasheet
MBA
Category Information

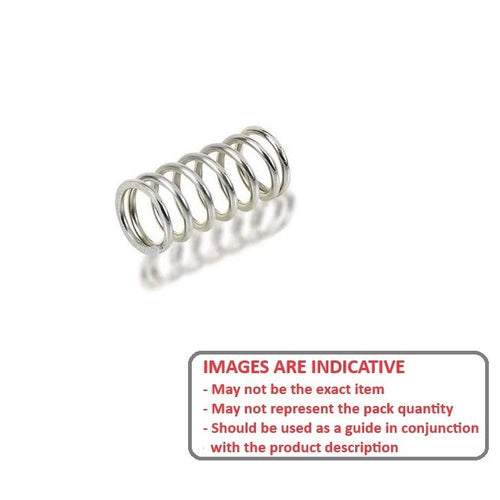

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
3.05
mm
+/- 0.127
(Equiv. 0.12 in.) - Free Length (L0)
9.7
mm
+/- 0.38
(Equiv. 0.382 in.) - Wire Diameter (d)
0.46
mm
+/- 0.015
(Equiv. 0.018 in.) - Loaded Height (L1) 6.02 mm
- Load at L1 9.32 N
- Rate (P/f) 0.1 N/mm
- Solid Height (Sh) 4.928 mm
- Approx. ID 2.1 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 1.98 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 1986K41
- S78CSY-012018038
- S78CSY012018038
