CS-0305-0254-06-S2-G - Datasheet
MBA
Category Information

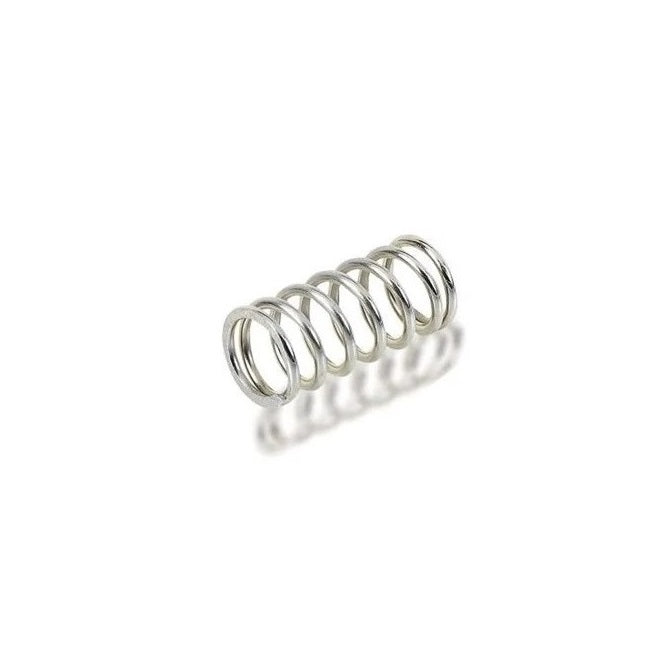

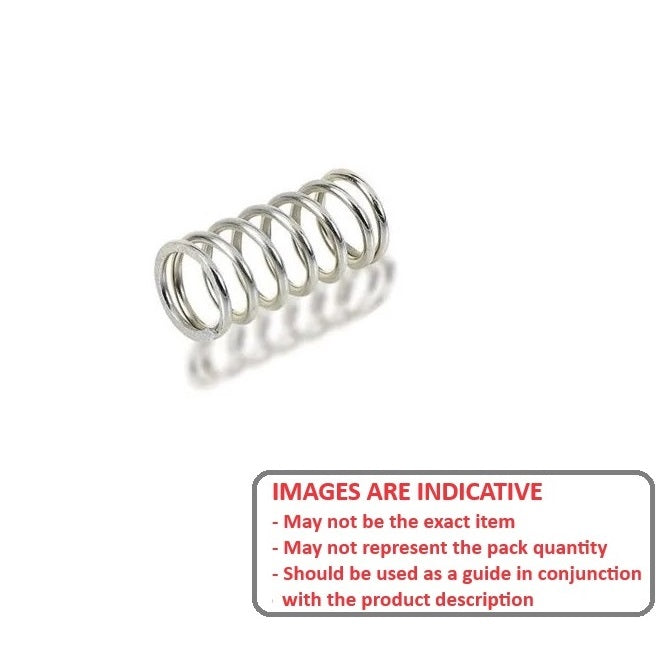

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
3.05
mm
+/- 0.127
(Equiv. 0.12 in.) - Free Length (L0)
25.4
mm
+/- 0.64
(Equiv. 1 in.) - Wire Diameter (d)
0.56
mm
+/- 0.015
(Equiv. 0.022 in.) - Loaded Height (L1) 18.01 mm
- Load at L1 16.32 N
- Rate (P/f) 2.1 N/mm
- Solid Height (Sh) 15.240 mm
- Approx. ID 1.9 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 1.78 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 1986K809
- S78CSY012022100
- S78CSY-012022100
