MAG-D-03-002-N40 - Datasheet
MBA
Category Information
Magnets - Rare Earth - PlatedPlated Rare Earth Magnets. Incredibly strong attraction and repulsion. Neodymium-Iron-Boron encased in nickel jackets to protect the brittle magnet material and prevent corrosion.
- High strength to weight ratios.
- Commonly used in miniature applications such as linear actuators, sensing applications, gyroscopes, flow meters, recording devices, pacemakers and alternators.
- Temperature range -73 oC to 93 oC.
- Size tolerances +/- 0.13
Product Data
- Diameter (A)
:
3.05
mm
(Equiv. 0.12 in.) - Thickness / Length (B)
1.52
mm
(Equiv. 0.06 in.) - Type Neodymium 40

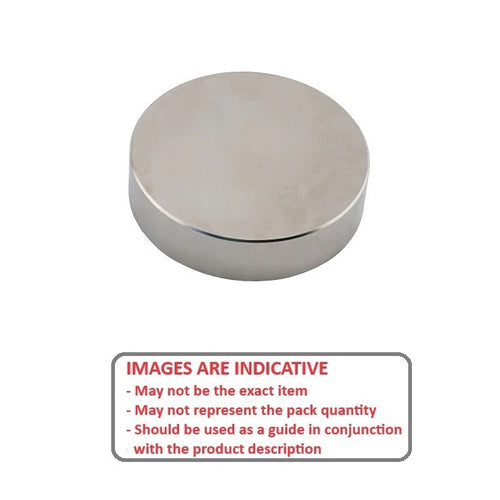

- Basic Shape Disk
- Approx Max. Pull 0.22 kg
- Material Neodymium 40
Product Compliance and Data
Additional Resources
Cross References
- 5862K21
- MAG442
- MAG-442
