STP310300160E - Datasheet

MBA

Category Information

Screws - Self Tapping - Soft Plastics - Pan Head

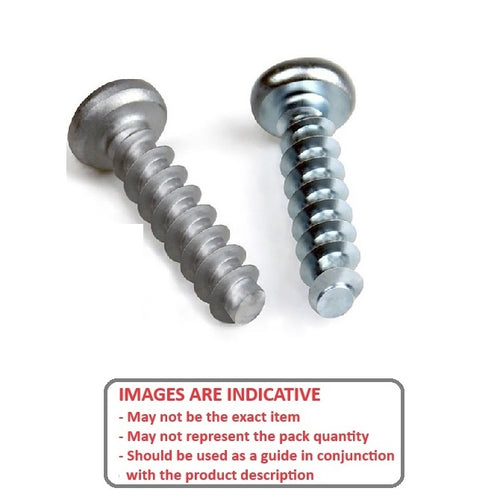

Pan Head Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws

  • Thread cutting screws for plastics
  • Be sure to select correct screw for hard or soft plastic threadcutting

Product Data

  • Approx Diameter : 3.00 mm
  • Thread Length (L) 16.0 mm
  • Drive Type Phillips
  • Head Diameter 6.1 (Button Head) mm
  • Type Course Threadcutting For Soft Plastics
  • Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Country of Origin: DE

Product Compliance and Data

Additional Resources

View full details

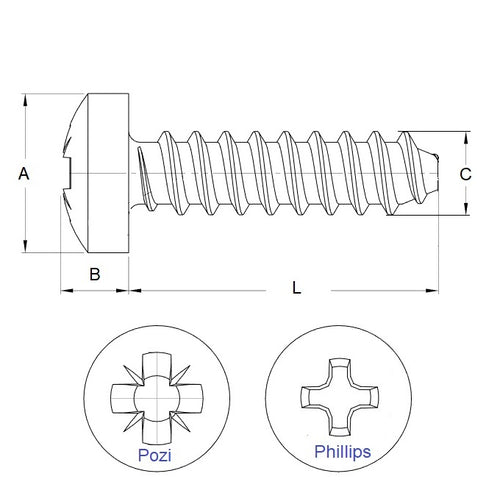

STP310300160EDiagramSTP310300160EImage
