RCL-030-072-S4 - Datasheet
Brighton Best
Category Information

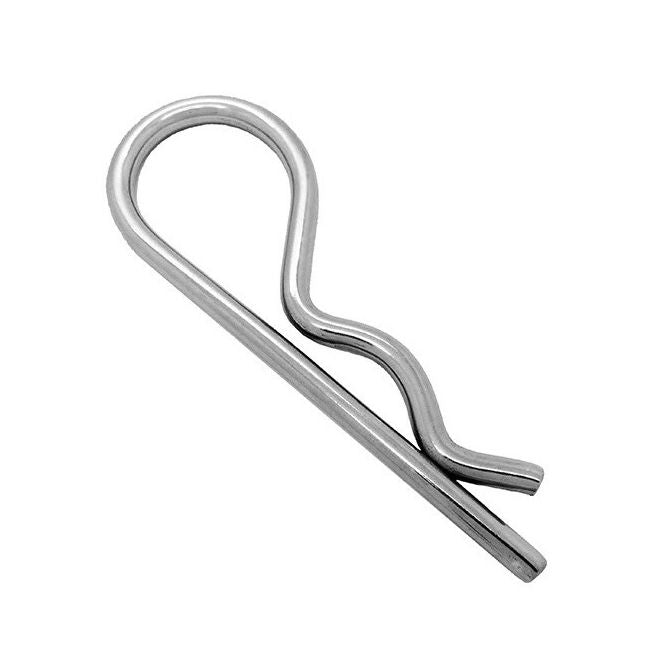

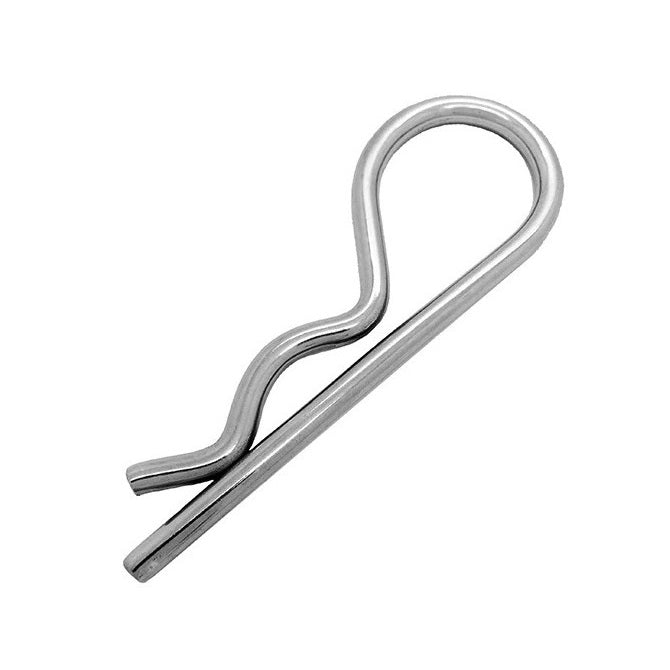

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data
- Wire Thickness (d)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
71.6
mm
(Equiv. 2.819 in.) - Material 304 Stainless Steel
- Drill Hole Size 3.50 mm
- Inside Eye Diameter (D) 18.00 mm
- Shaft Size Range 10.00 to 16.00 mm
- Approx. Bridge Length (D1) 26 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best W22030
