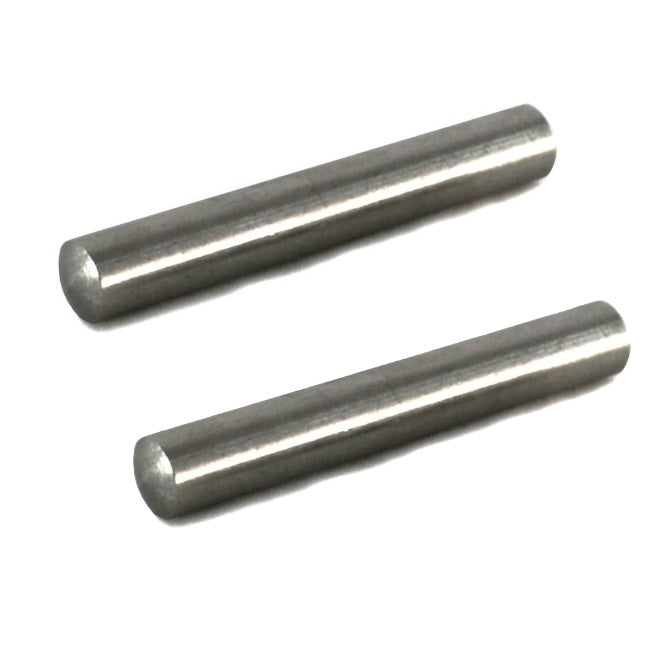

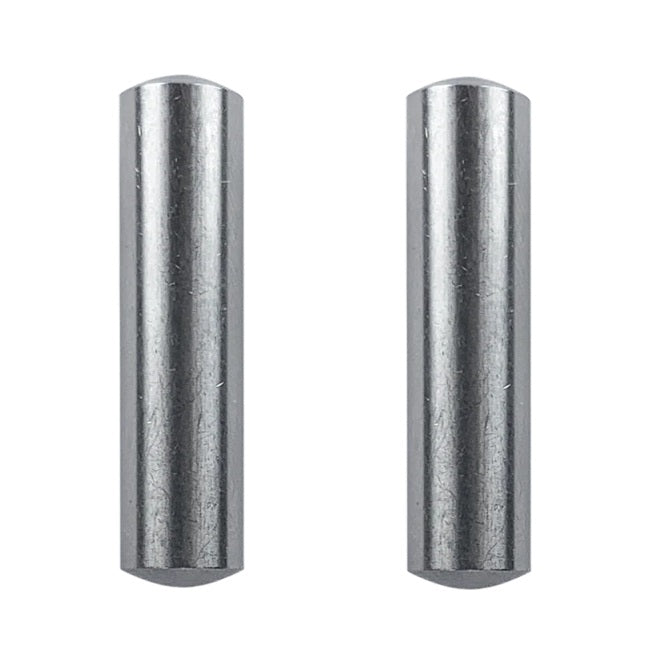

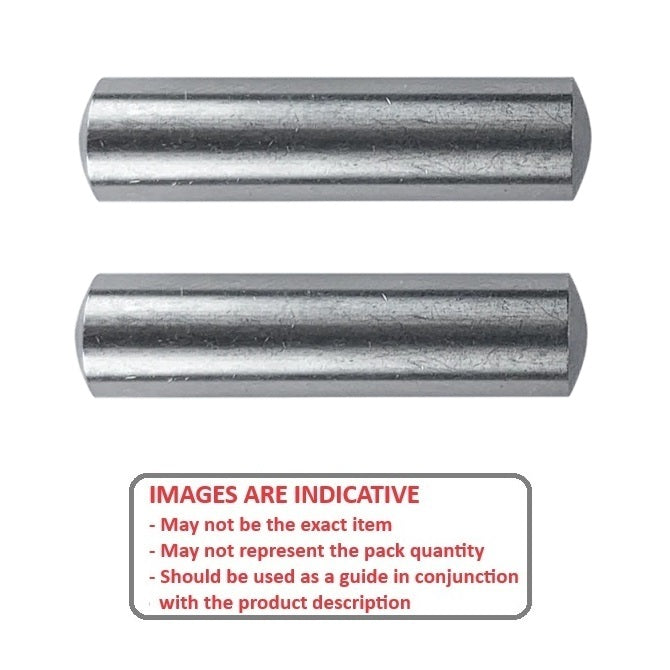

Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless303-304 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel Pins - 303/304 Grade Stainless- Based on DIN7
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
- Diameter tolerances are m6 unless otherwise listed
Product Data
- Diameter (D)
:
2.000
mm
+ 0.002 / + 0.008
(Equiv. 0.079 in.) - Length (L)
9.00
mm
+/- 0.254
(Equiv. 0.354 in.) - Approx. Overall Length
10.00
mm
+/ - 0.254

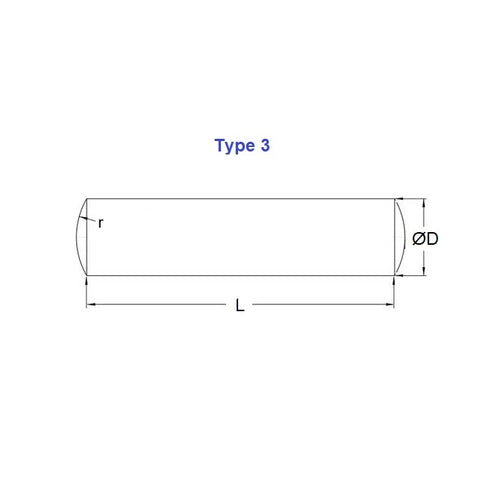

(Equiv. 0.394 in.) - Type 3 (Rounded Ends)
- Notes Special Oversized Overall Length 10mm. DIN7 is 9.60
- Standard Modified
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
