PSP-020-008-S42 - Datasheet
MBA
Category Information

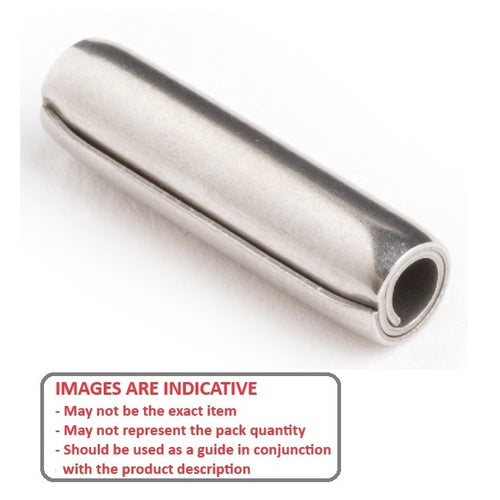

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data

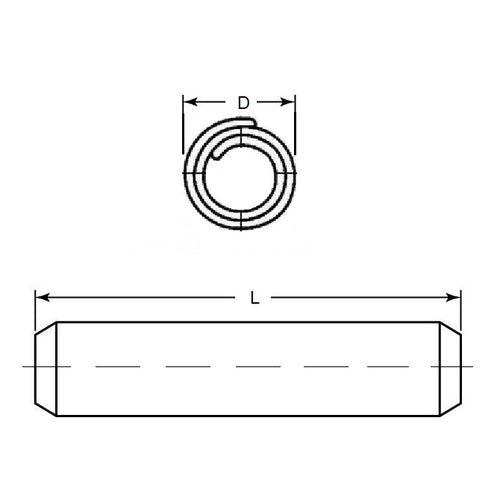

- Nominal Hole Diameter
:
2.00
mm
(Equiv. 0.079 in.) - Length
8.00
mm
+/- 0.25
(Equiv. 0.315 in.) - Drill Size
2.00 - 2.10
mm
(Equiv. 0.079 in.) - Loose Diameter 2.13 - 2.25 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel AISI 420C PV
Product Compliance and Data
Additional Resources
Cross References
- PSP020008S420
