W0020-F-005-003-CZ - Datasheet

MBA

Category Information

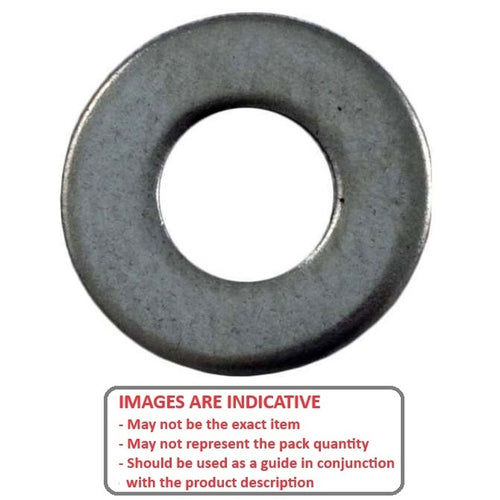

Washers - Flat - Commercial - Mild Steel

Mild Steel Commercial Flat Washers. Mild steel flat washers selection. Includes fender washers. Zinc plated and unplated listings.

  • Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
  • Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
  • Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.
  • In most cases the actual washer size will be larger than the nominal ID and smaller than the nominal OD.

Product Data

  • Nominal Inside Diameter (d) : 2.00 mm AS1237 / DIN125
    (Equiv. 0.079 in.)
  • Nominal Outside Diameter (D) 5.00 mm AS1237 / DIN125
    (Equiv. 0.197 in.)
  • Thickness (T) 0.30 mm AS1237 / DIN125
    (Equiv. 0.012 in.)
  • Other To Suit M2 Screw
  • Grade Commercial
  • Actual ID (Ref) 2.1 mm
  • Material Zinc Plated Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • WASCA 1000245
  • 91166A180
  • WASCA WSZNP25
