W0020-LE-005-003-C - Datasheet
MBA
Category Information

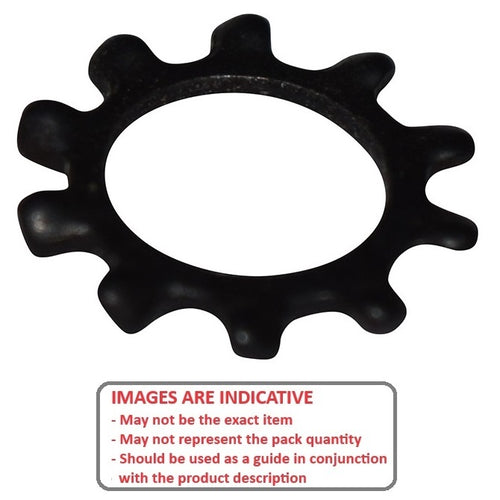

Washers - Lock - External Tooth - Spring SteelSpring Steel External Tooth Lock Washers. Spring steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Inside Diameter
:
2.00
mm
(Equiv. 0.079 in.) - Outside Diameter
4.5
mm
(Equiv. 0.177 in.) - Material Thickness (T)
0.30
mm
(Equiv. 0.012 in.) - Nominal Screw Size M2, 2-56, 2-64
- Actual ID (Ref) 2.2 mm
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- MD6797MQZE020
