W0020-T-004-005-L-S4 - Datasheet
TW
Category Information

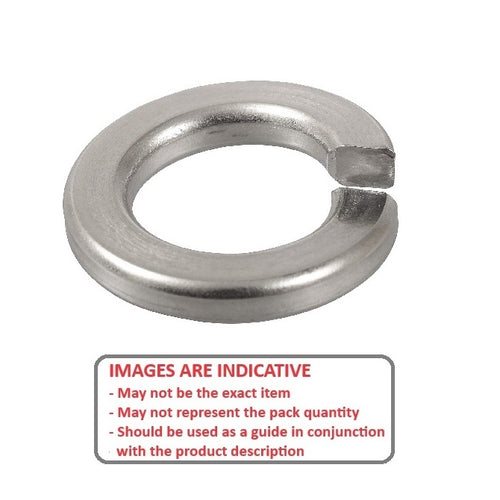

Washers - Lock - Split - Stainless SteelStainless Steel Split Lock Washers. Split type. 304 stainless steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.

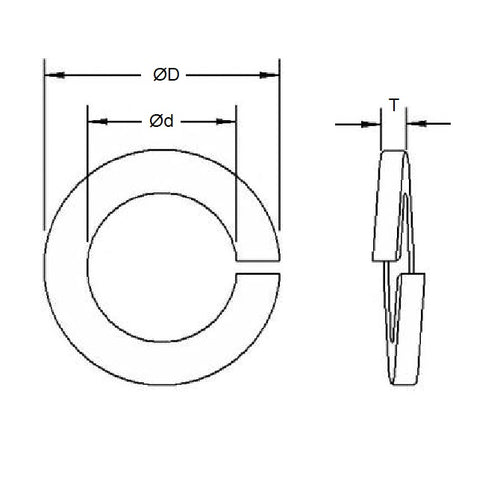

Product Data
- Nominal Inside Diameter
:
2.00
mm
+ 0.3 / - 0.0
(Equiv. 0.079 in.) - Outside Diameter
4.4
mm
(Equiv. 0.173 in.) - Thickness
0.50
mm
(Equiv. 0.02 in.) - Info 304 Stainless
- Info M2
- Info DIN 127 B
- Actual ID (Ref) 2.4 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 836020
