Miniature Bearings Australia
CP-032-020-09-R-B - Datasheet
MBA
Category Information

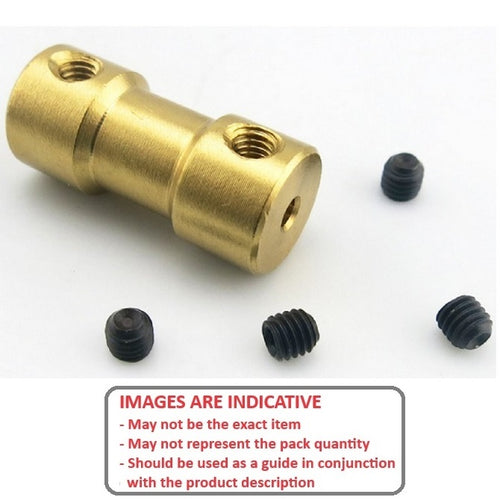

Couplings - Rigid - Hobby BrassHobby Brass Rigid Couplings. inexpensive brass couplings for shaft sizes from 2 to 5 mm.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

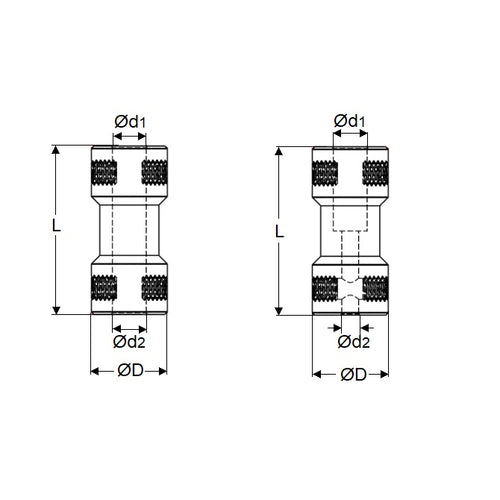

- Bore (b1)
:
2
mm
(Equiv. 0.079 in.) - Bore (b2)
3.175
mm
(Equiv. 0.125 in.) - OD (D)
9.00
mm
(Equiv. 0.354 in.) - Length (L) 20.00 mm
- Material Brass
