PSP-020-012-S2 - Datasheet
MBA
Category Information

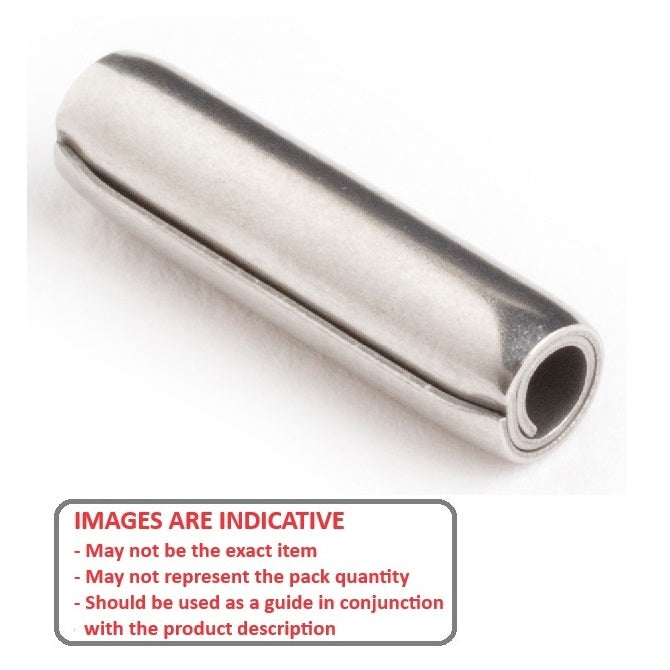

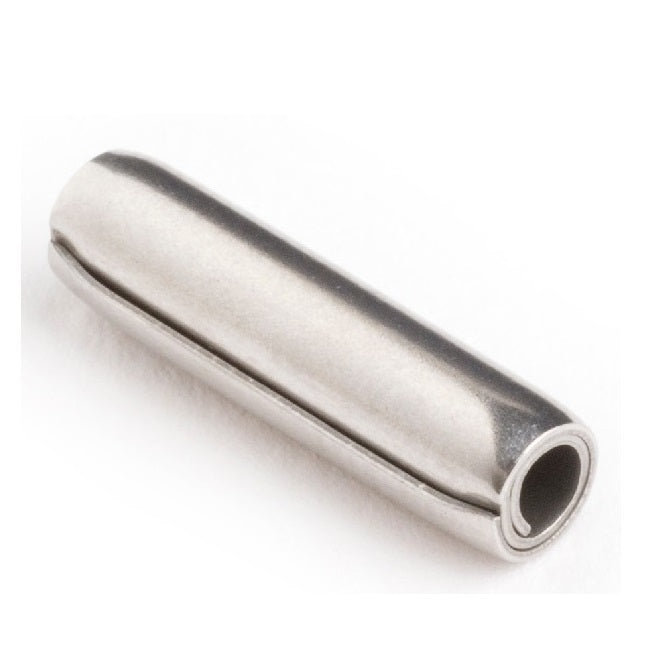

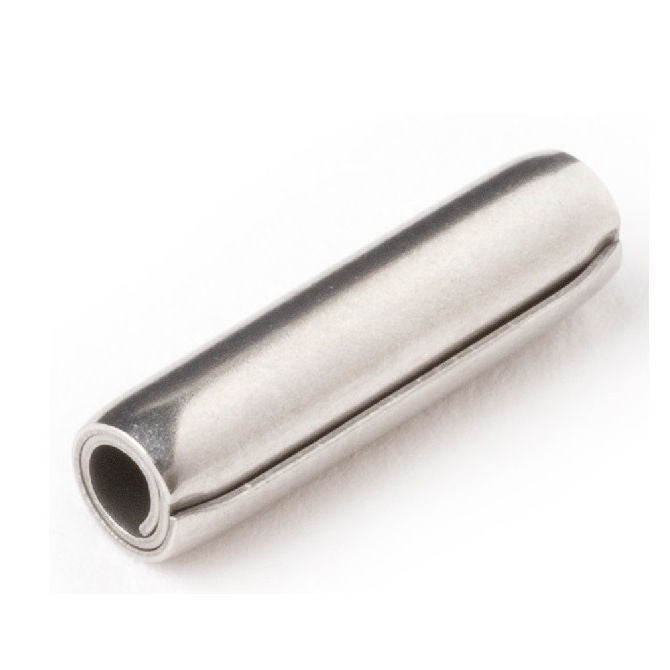

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
2.00
mm
(Equiv. 0.079 in.) - Length
12.00
mm
+/- 0.50
(Equiv. 0.472 in.) - Drill Size
2.00 - 2.10
mm
(Equiv. 0.079 in.) - Loose Diameter 2.13 - 2.25 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91612A115
- EP212
- EP2-12
