DP020-011-316-3 - Datasheet
NoCor
Category Information

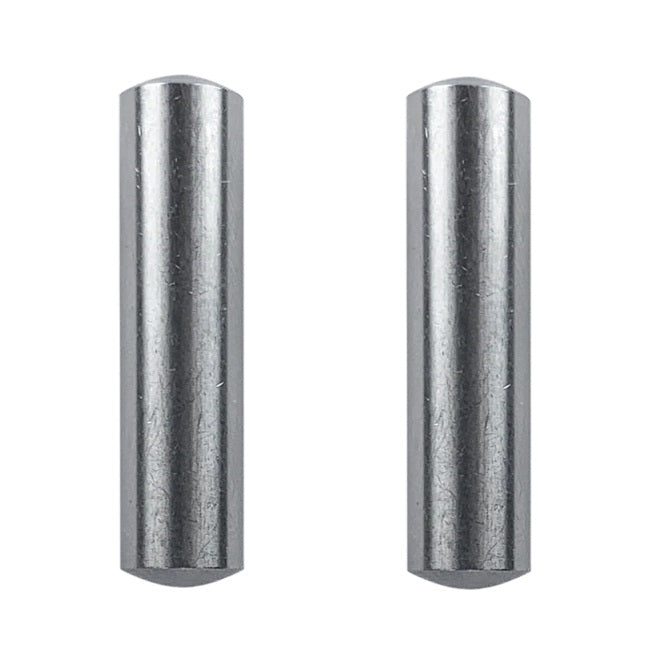

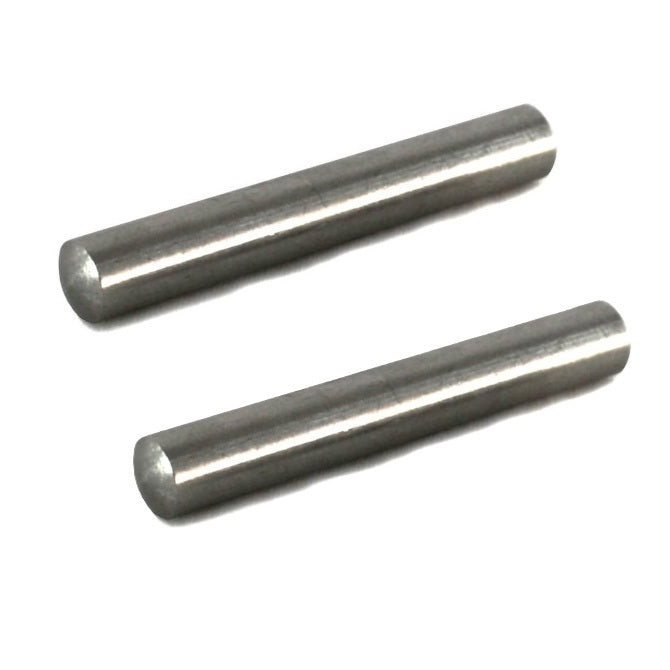

Pins - Dowel - Standard - Rounded Ends - 316 Stainless316 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel Pins - 316 Grade - Based on DIN7
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
- Diameter tolerances are m6 unless otherwise listed
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
2.000
mm
+ 0.002 / + 0.008
(Equiv. 0.079 in.) - Length (L)
11.00
mm
+/- 0.350
(Equiv. 0.433 in.) - Approx. Overall Length
11.60
mm
+/ - 0.350
(Equiv. 0.457 in.) - Type 3 (Rounded Ends)
- Standard Based on DIN 7
- Material Stainless Steel 316 (Similar to A4, 18-10)
