SC047B-019-R-SL-BN - Datasheet

MBA

Category Information

Screws - Round Head - Steel - Slotted

Slotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size (C) : 2BA (4.7mm)
  • Thread Length (L) 19.1 mm
    (Equiv. 0.752 in.)
  • Material Nickel Plated Brass
  • Max Head Diameter 8.10 mm
  • Max Head Height 3.30 mm
  • Type Round / Slotted
  • Pitch 0.812 mm
  • Threads Per Inch 31.3 TPI
  • Material Nickel Plated Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

View full details

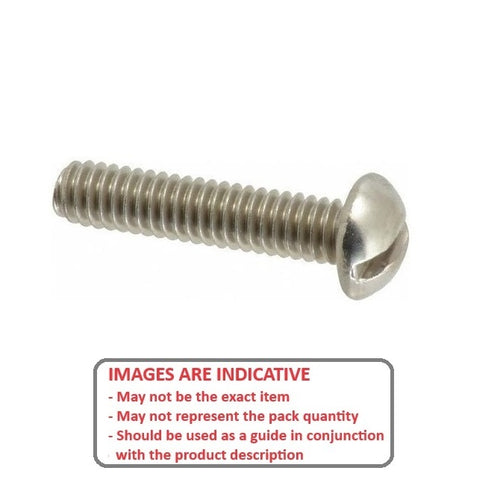

SC047B-019-R-SL-BNDiagramSC047B-019-R-SL-BNImage
