P-XL-029-200C - Datasheet
MBA
Category Information

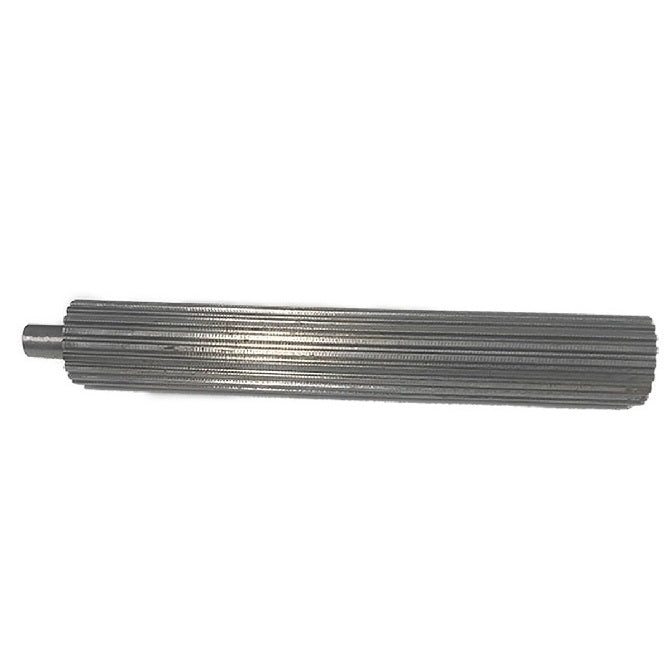

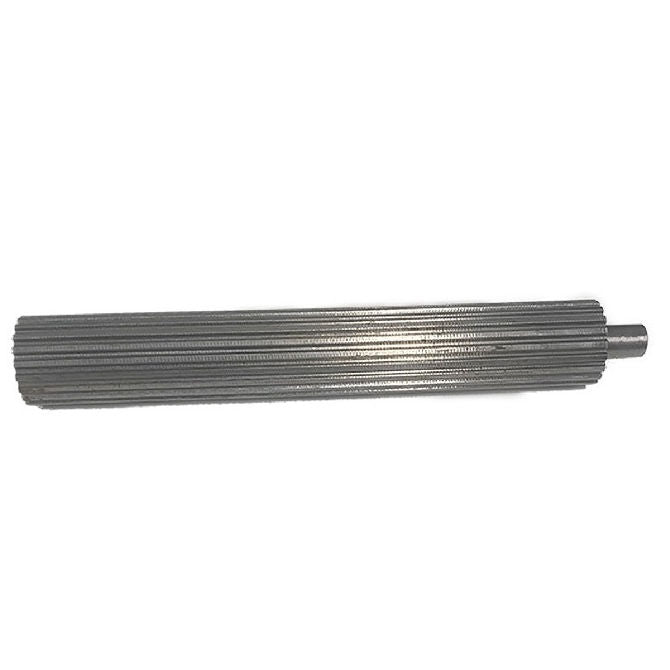

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon SteelCarbon Steel 5.080mm Pitch XL Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 29
- Min. Usable Length (L)
200.0
mm
(Equiv. 7.874 in.) - Pitch Diameter (PD)
46.89
mm
(Equiv. 1.846 in.) - Outside Diameter (OD) 46.38 mm
- Shank Diameter (D1) 12.70 mm
- Shank Length (Sl) 19.1 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 29XL-PS8S
- 29XLPS8S
- A6C2M29XL20
- A6C229XL08
- A6C2-29XL08
