Miniature Bearings Australia
P-080G-029-120FF-SB-T1210 - Datasheet
MBA
Category Information

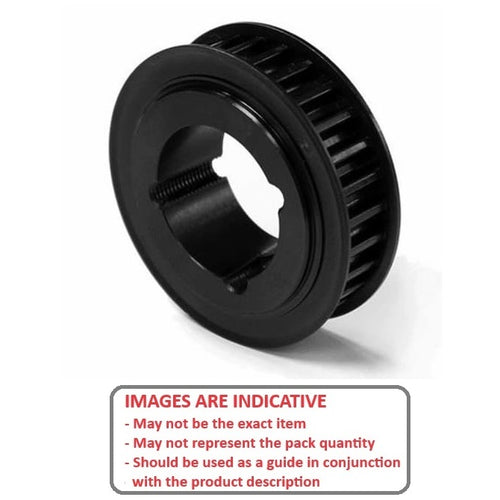

Pulleys - Metric Timing - 8.000mm Pitch - GT - 12mm Wide - TaperlockTaperlock 12mm Wide GT 8.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit HTD 8.000mm Pitch Timing Belts. Suits belts 12.0mm wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Black Oxide Coated Steel and Cast Iron
- Match with a taperlock to suit your bore requirements
Product Data
- Number of Teeth : 29
- Max Belt Width
12.00
mm
(Equiv. 0.472 in.) - Bore (d) Determined by Taperlock Series
- Bore Type Suits Taperlock 1210
- Type 2

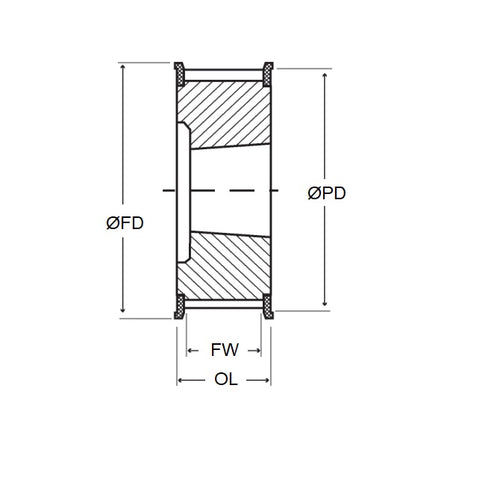

- Pitch Dia. (D) 73.81 mm
- Flange Diameter (FD) 82.7 mm
- Overall Length 25.4 mm
- Material Steel - Black Oxide
Product Compliance and Data
Additional Resources
Cross References
- Gates 29-8P12-1210
- 298P121210
