GAS7RS - Datasheet

MBA

Category Information

Gas Springs - Adjustable Force

Adjustable Force Gas Springs. Provides mechanical assistance for lifting and supporting various components. Adjustable Force.

    Product Data

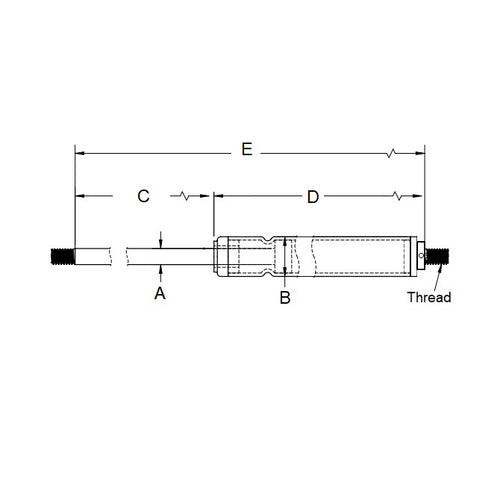

    • Stroke (C) : 299.97 mm
    • Extended Length 640.08 mm
    • Supplied Force 122.47 KG
    • Shaft Diameter (A) 9.91 mm
    • Body Diameter (B) 23.11 mm
    • Thread M8 x 1.25
    • More Information For more information please contact us.
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® GAS-7
      • GAS7
      View full details

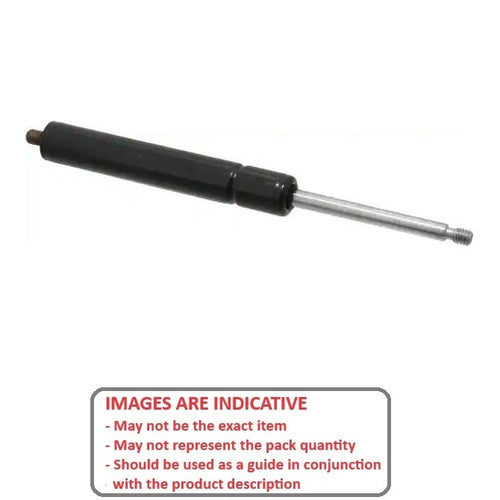

      GAS7RSDiagramGAS7RSImage
