BV16-02921-BX115 - Datasheet

MBA

Category Information

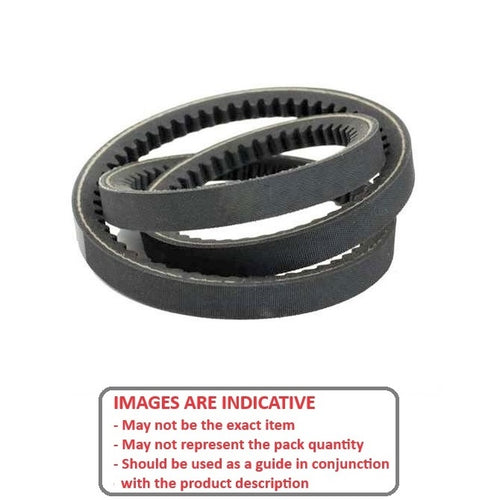

Belts - Vee - 15.9 x 10.3mm Notched BX

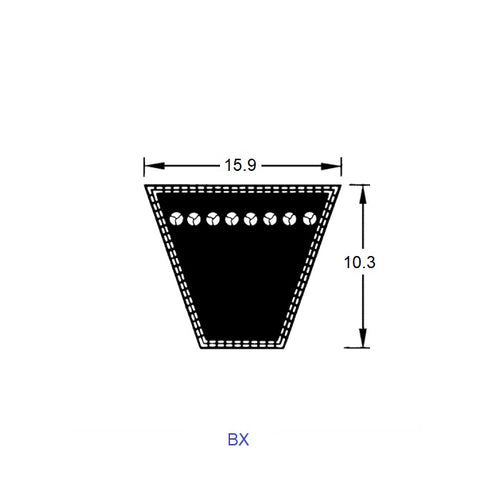

15.9 x 10.3mm Notched BX Vee Belts. 15.9mm Top Width x 10.3mm Height.

  • An expanded range may be available on special order. Please enquire.
  • Sizes are nominal and may vary slightly.

Product Data

  • Inside Circumference : 2921.0 (115.0 in.) mm
    (Equiv. 115 in.)
  • Type Cogged V-Belt
  • Re-Inforcement Polyester
  • Material Natural Rubber - Raw Edge
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • BTQBX115
    • BTQ-BX115
