Miniature Bearings Australia
WRE-0286-RD-C - Datasheet
MBA
Category Information

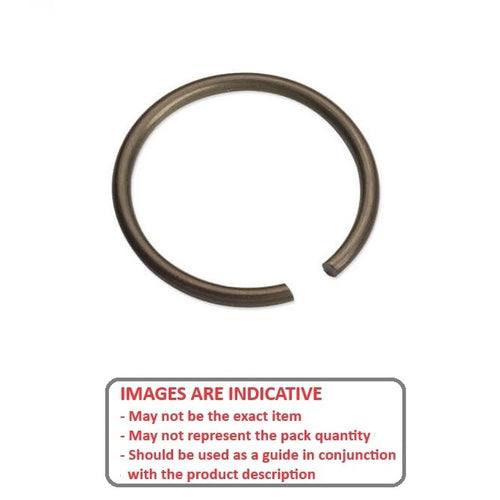

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.
Product Data

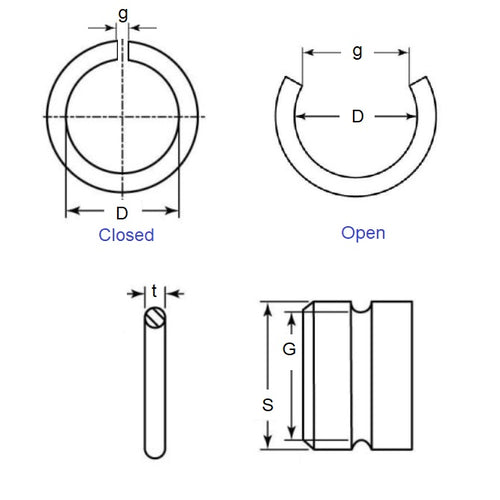

- Shaft Diameter (Ds)
:
28.58
mm
(Equiv. 1.125 in.) - Clip Thickness (T)
2.54
mm
+/- 0.06
(Equiv. 0.1 in.) - Groove Dia. (Dg)
27.00
mm
+ /- 0.08
(Equiv. 1.063 in.) - Approx. Loose Circlip ID (A) 26.70 mm
- Radial Wall (S) min/max 27.00 mm
- Groove Width (W) 2.59 mm
- Free Outside Dia (Dr) 31.78
- Section Profile Round Section
- Info Axial Assembly - Closed Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 100-342
- Arcon XRC-342
- NoCor XRC-342
- XRC342
- 100342
- A0900342
- A0900-342
