Miniature Bearings Australia
BL-02858-PP - Datasheet
MBA
Category Information
Balls - Plastic - PolypropylenePolypropylene Plastic Balls. Excellent for liquid level float applications .Very resistant to most acids and alkalies.
- Plastic ball grades are not the same as those for precision balls
- Polypropylene
- Tolerance and sphericity: up to and including 25.4mm diameter = + / -0.0508mm, over 25.4mm diameter +/-0.0762mm.
- Unpolished.
- Specific Gravity: 0.91.
Product Data

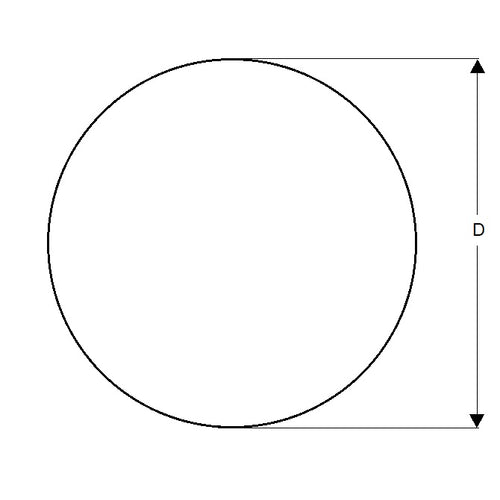

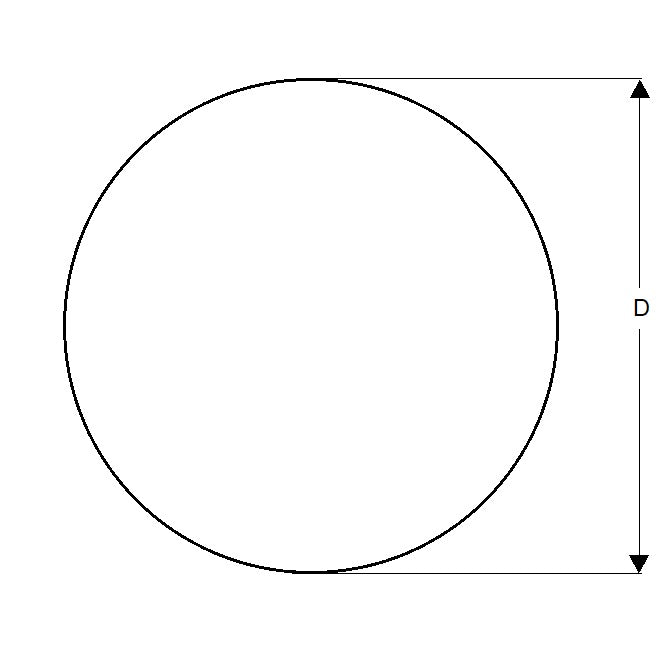

- Diameter (D)
:
28.58
mm
+/- 0.051
(Equiv. 1.125 in.) - Material Polypropylene
- Precision Grade 3
- Hardness 86 Rockwell R
- Properties Excellent for liquid level float applications.
- Colour White
- Specific Gravity 0.91
- Material Polypropylene
