0R-0286-0914-CA360 - Datasheet

MBA

Category Information

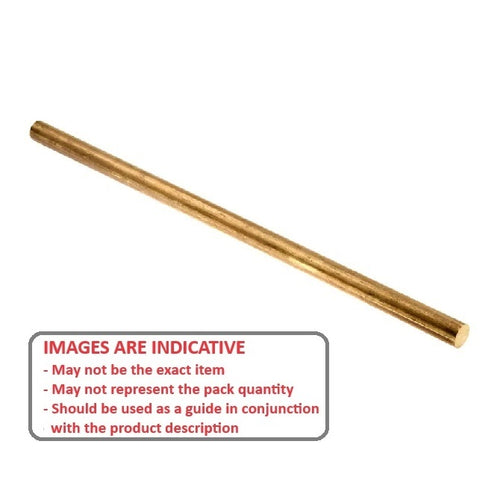

Rod - Round - Brass

Brass Round Rod. For general hobby applications.

  • An expanded range may be available on special order. Please enquire.
  • NOTE! Very thin sizes may experience some bending. They may not be straight for the entire length.
  • May be slightly oversized on OD so some reworking may be required before fitting closely mating parts such as bearings.
  • This product is not recommended for use as a bearing shaft.
  • We suggest you use items from the category - Shafting - Ground for bearing shaft.
  • Includes K&S Metals range and more

Product Data

  • Nominal Diameter (D) : 28.58 mm
    (Equiv. 1.125 in.)
  • Length (L) 914.4 mm
    (Equiv. 36 in.)
  • Grade CA360
  • Weight 5.000 kg
  • Material Brass CA360
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • MES330
  • MES-330
