TR-286-306-064-S3 - Datasheet
MBA
Category Information

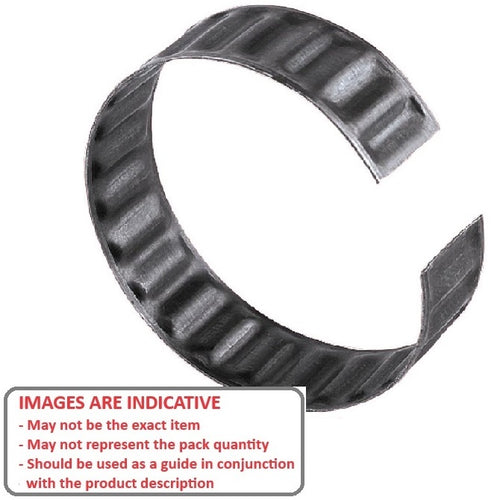

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

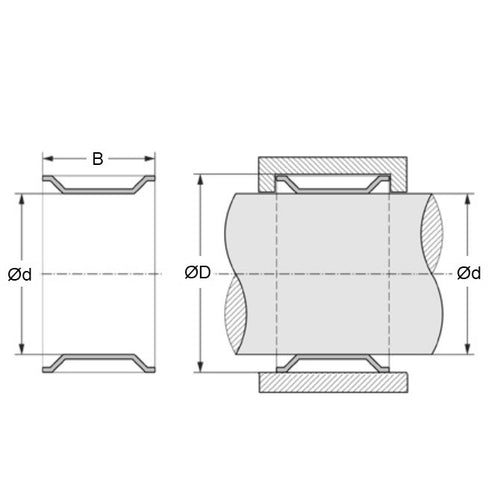

- Inner Part OD (d)
:
28.575 to 28.524
mm
(Equiv. 1.125 in.) - Housing ID (D)
30.556 to 30.455
mm
(Equiv. 1.203 in.) - Ring Width (B)
6.35
mm
(Equiv. 0.25 in.) - Outer Part ID (DT) mm 30.277 to 30.175 For Torque Transfer
- Max. Design Torque 19.21 N.m
- Style For bearing OD
- Max. Radial Load 3203 N
- Max. Design Thrust 1334 N
- To Suit OD of Bearing R8
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
