CP-286K-286K-48-079-R2-SC - Datasheet
MBA
Category Information

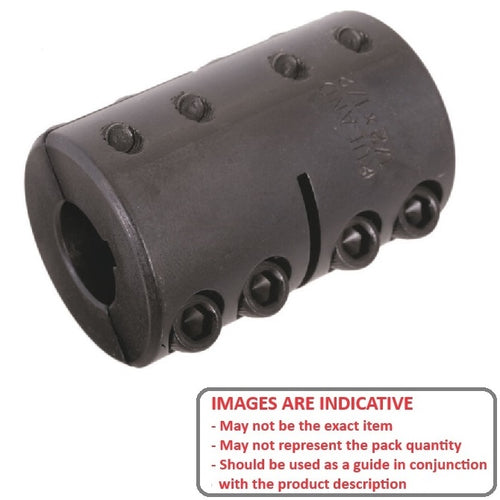

Couplings - Rigid - Clamp - 2 Piece Steel2 Piece Steel Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
- Precision Machined
- High torsional load
- Non marring, easy to install and adjust. Assemble without moving shafts
- Use on hardened shafts, rigid clamp type design, easily machinable
- Black finish with alloy steel cap screws. Available with stepped bores and keyways on 5 week delivery.

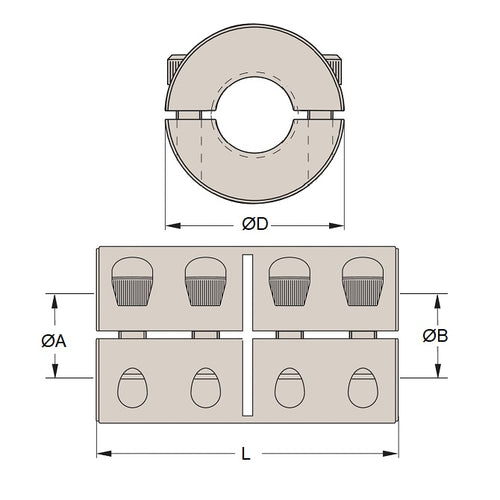

Product Data
- Bore (b1)
:
28.575 (Keyed)
mm
(Equiv. 1.125 in.) - Bore (b2) Keyed 28.575 mm
- OD (D)
47.620
mm
(Equiv. 1.875 in.) - Length (L) 79.370 mm
- Features 6.350 Keyway
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 60845K17
- CC416
- CC-416
