CP-286K-286K-54-076-R-CG - Datasheet
MBA
Category Information

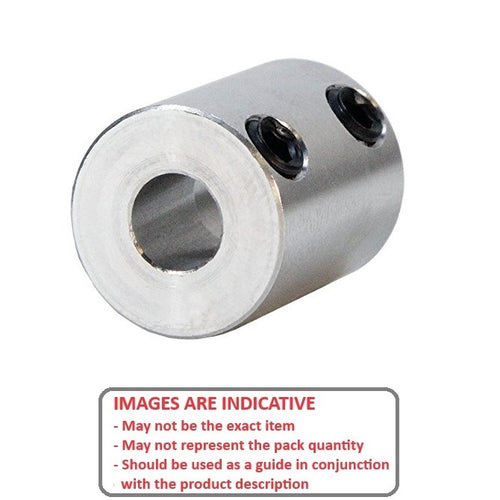

Couplings - Rigid - Set ScrewSet Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.
- An expanded range may be available on special order. Please enquire.
- Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
- Quality Class Commercial: Bore Tolerance +0.051 / -0.000.
Product Data
- Bore (b1)
:
28.575 (Keyed 6.35 x 3.18)
mm
(Equiv. 1.125 in.) - Bore (b2) Keyed 1/4 - 28.575 mm
- OD (D)
54.102
mm
(Equiv. 2.13 in.) - Length (L) 76.200 mm
- Bore Depth (B) Through Bore mm
- Quality Class Commercial

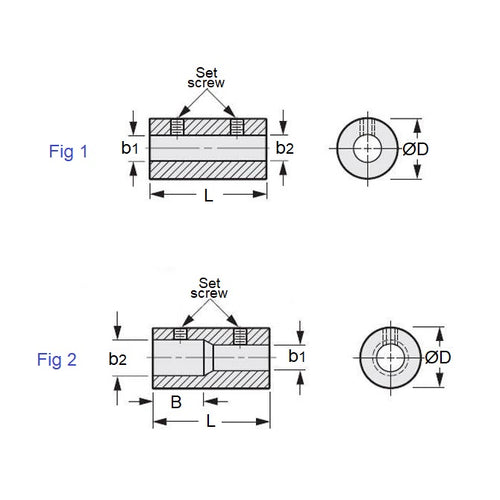

- Figure Fig. 1
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- SC-1125
- SC1125
