CCF890RS - Datasheet

MBA

Category Information

Roller Followers - Crown

Crown Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 28.575 mm
      (Equiv. 1.125 in.)
    • Overall Width (D) 17.450 mm
      (Equiv. 0.687 in.)
    • Bore (B) 7.938 mm
      (Equiv. 0.313 in.)
    • Width (C) 15.875 mm
    • Crown Radius 12.000 deg
    • E 18.256 mm
    • Dynamic Load Rating 1009.243 kg
    • Static Load Rating 2775.985 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 3689K14
      • CCF-890
      • CCF890
      View full details

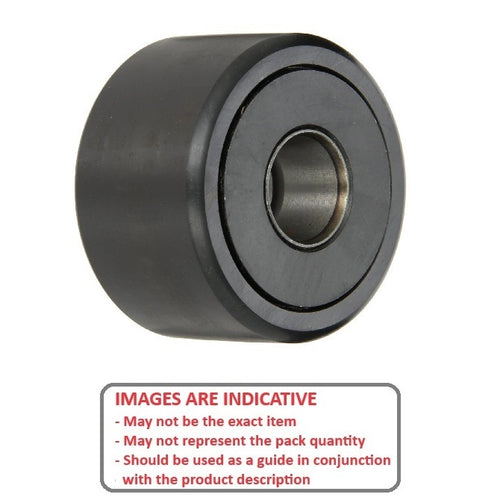

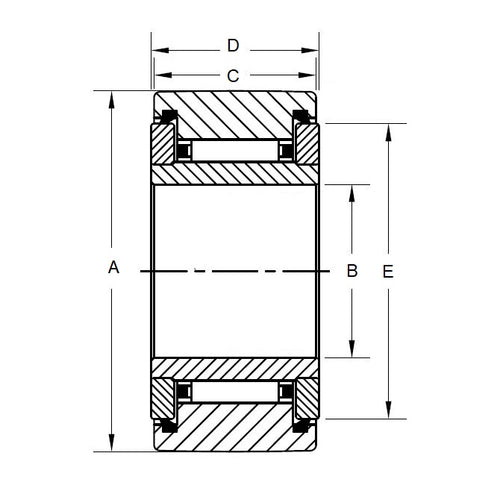

      CCF890RSDiagramCCF890RSImage
