Miniature Bearings Australia
P-080G-027-300FF-SB-T1108 - Datasheet
MBA
Category Information

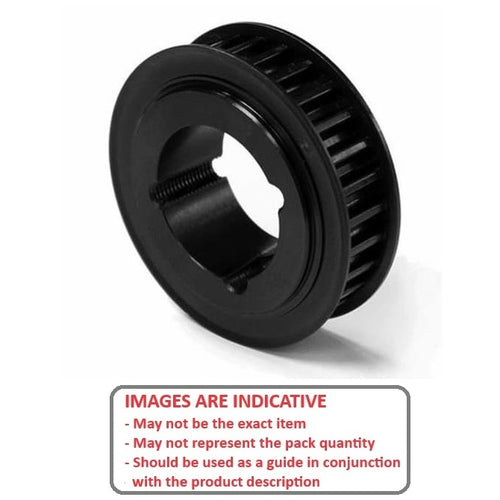

Pulleys - Metric Timing - 8.000mm Pitch - GT - 30mm Wide Taperlock30mm Wide Taperlock GT 8.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit HTD 8.000mm Pitch Timing Belts. Suits belts 30mm wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Black Oxide Coated Steel and Cast Iron
- Match with a taperlock to suit your bore requirements
Product Data
- Number of Teeth : 27
- Max Belt Width
30.00
mm
(Equiv. 1.181 in.) - Bore (d) Determined by Taperlock Series
- Bore Type Suits Taperlock 1108
- Type 2

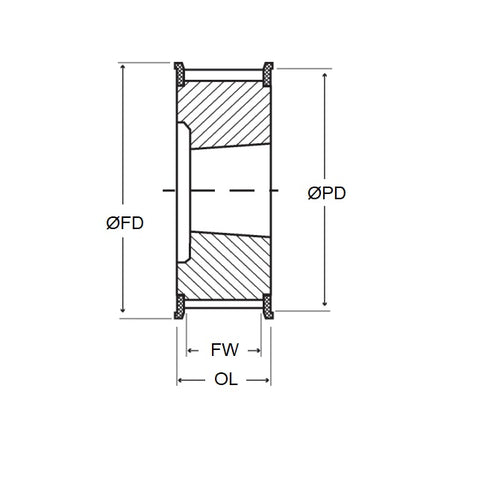

- Pitch Dia. (D) 68.72 mm
- Flange Diameter (FD) 78.7 mm
- Overall Length 38.1 mm
- Material Steel - Black Oxide
Product Compliance and Data
Additional Resources
Cross References
- Gates 27-8P30-1108
- 278P301108
