GR-D96-04-0279-09-S41 - Datasheet
MBA
Category Information

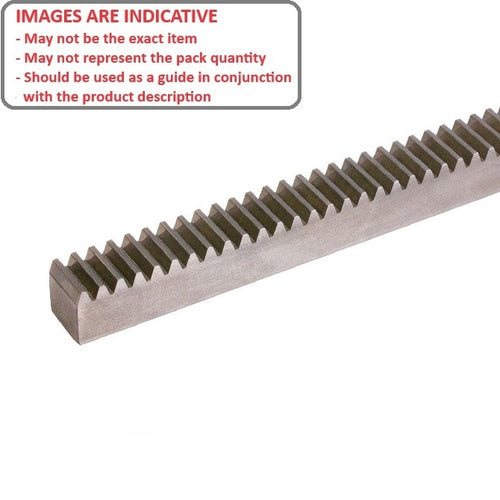

Gears - Rack - Imperial - 96DP - Stainless - PlainPlain Stainless 96DP Imperial Rack Gears. 20 Degree Pressure Angle. 416 stainless steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 96 DP. Approx 0.83mm between teeth.
Product Data
- Length (L)
:
279.40
mm
(Equiv. 11 in.) - Face Width (fw)
4.242
mm
(Equiv. 0.167 in.) - Height (h)
9.017
mm
(Equiv. 0.355 in.) - Pitch Type 96DP
- Pitch Height (ph) 8.753 mm
- Pressure Angle 20 °
- Precision Precision
- Mounting Holes None
- Shape Rectangular
- Material Stainless Steel AISI 416 Rc 36-42
Product Compliance and Data
Additional Resources
Cross References
- R9611SS
- R96-11SS
- S1810Y-RB-6P
- S1810YRB6P
