MSF-160M-CGC-064 - Datasheet
MBA
Category Information

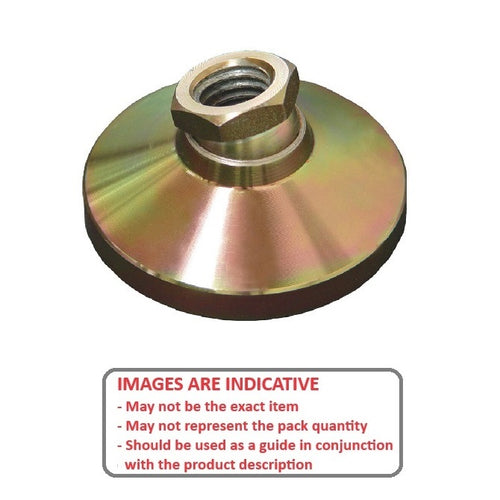

Mounts - Levelling Socket - Swivel - Standard - Gold ChromateGold Chromate Standard Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
64.0
mm
(Equiv. 2.52 in.) - Foot Height (C)
32.0
mm
(Equiv. 1.26 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 8.00 mm
- Load Rating 2720 Kg
- Steel
- Finish Gold Chromate
- Hex Flats (B) 24.00 mm
- Material Gold Chromate
Product Compliance and Data
Additional Resources
Cross References
- MSF2730M16G
- MLP15
- MLP-15
