MSM-160M-051-CCC - Datasheet
MBA
Category Information

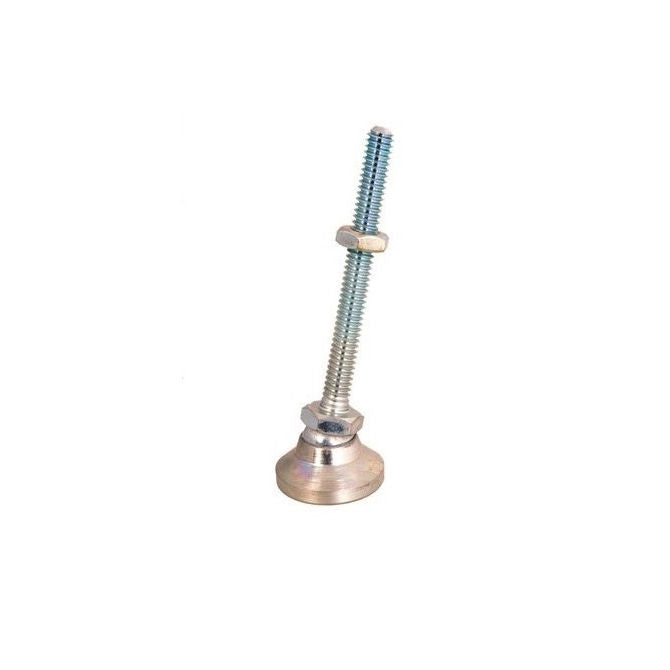

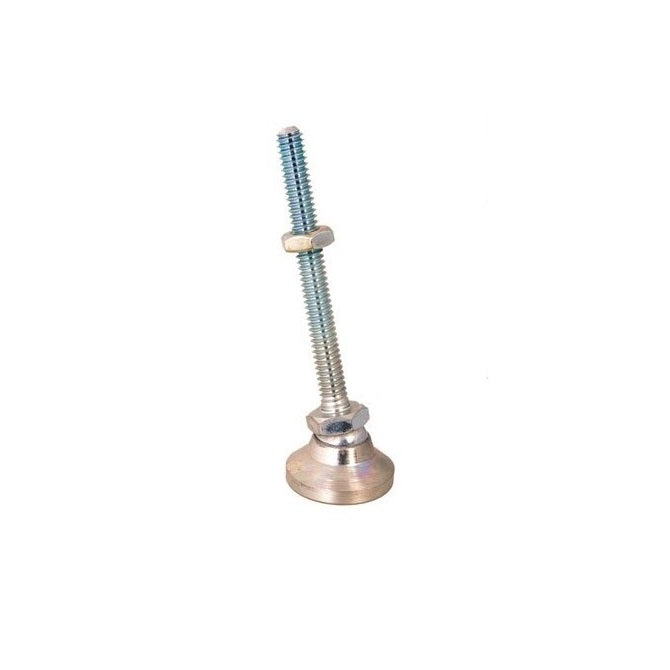

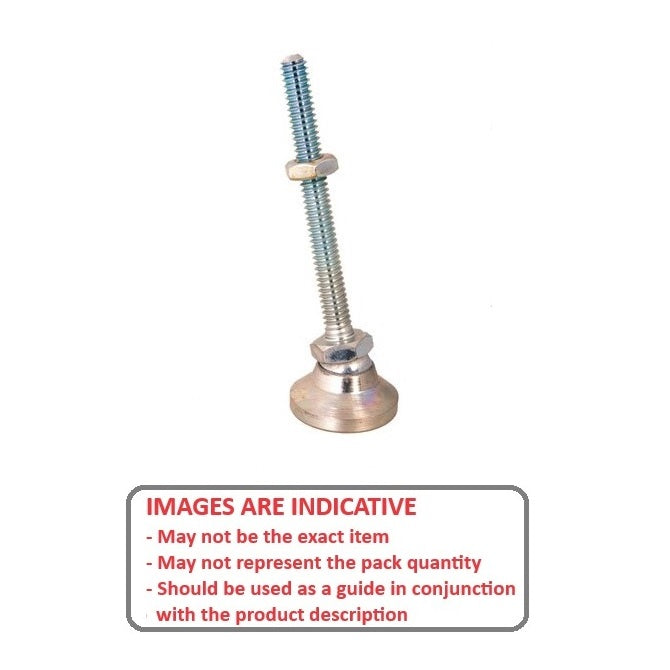

Mounts - Levelling Studded - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

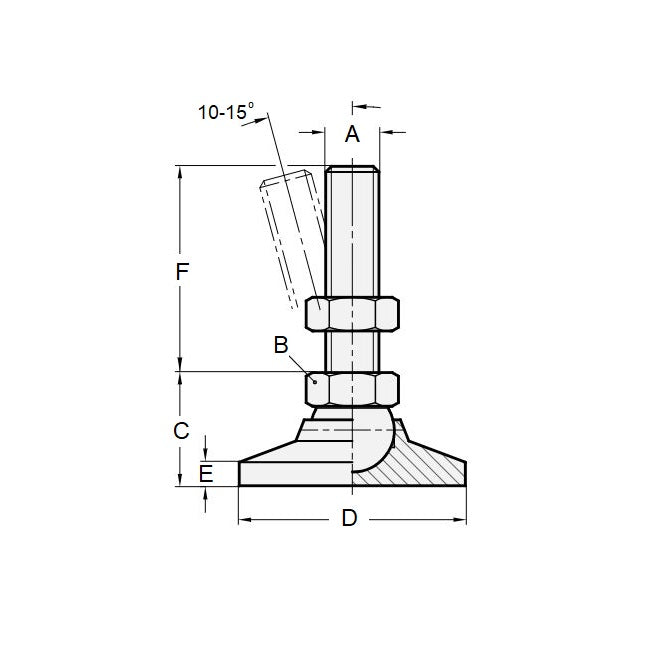

- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D)
64.0
mm
(Equiv. 2.52 in.) - Foot Height (C)
32.0
mm
(Equiv. 1.26 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 8.00 mm
- Overall Height 83.0 mm
- Load Rating 2720 Kg
- Finish Clear Chromate
- Hex Flats (B) 24.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6301K75
- MSM2720M16CC
- MLP240
- MLP-240
