MSF-159C-S3 - Datasheet
MBA
Category Information

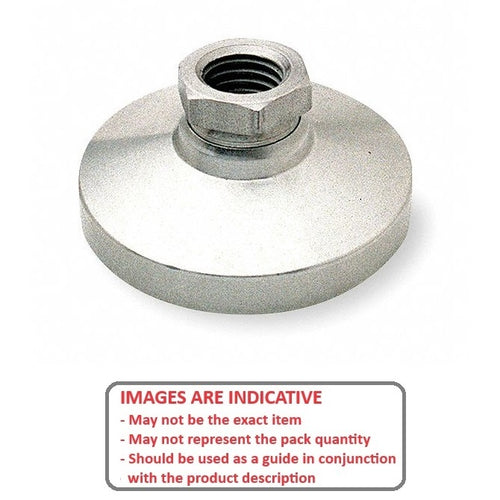

Mounts - Levelling Socket - Swivel - 303 Stainless - StandardStandard 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
63.5
mm
(Equiv. 2.5 in.) - Foot Height (C)
31.8
mm
(Equiv. 1.252 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 7.94 mm
- Load Rating 2720 Kg
- 303 Stainless
- Hex Flats (B) 22.23 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 6103K53
- MSF2720159CS3
- L-2SS
- L2SS
