MSF-159C-C-2LH - Datasheet
MBA
Category Information

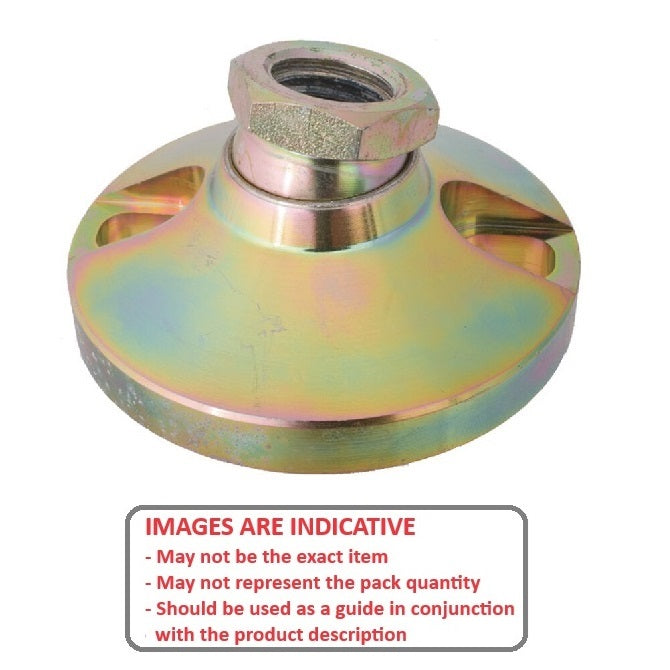

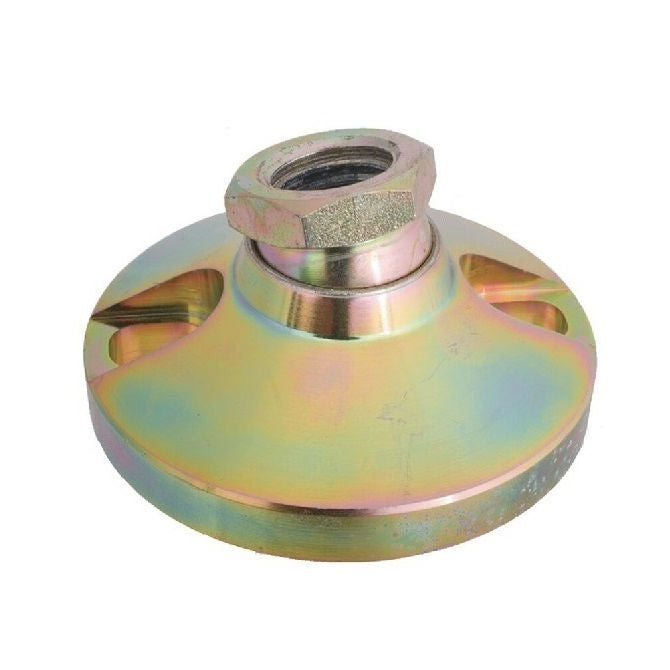

Mounts - Levelling Socket - Swivel - With Lag HolesWith Lag Holes Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches. Lag holes alow base to be secured.
- An expanded range may be available on special order. Please enquire.
- Hardened ball prevents galling and forms it's own seat.
- Large diameter pad design assures solid support.
- Zinc plated with gold chromate finish.
Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
63.5
mm
(Equiv. 2.5 in.) - Foot Height (C)
31.8
mm
(Equiv. 1.252 in.) - Base Height (E) 7.93 mm
- Load Rating 2720 Kg
- Gold Chromate
- Cap Screw to Suit (I) 5/16-18 UNC (7.938mm)
- H 50.038 mm
- Hex Flats (B) 22.225 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF2720159CLH
- RSL-2000
- RSL2000
