MLF-159C-S6 - Datasheet
MBA
Category Information

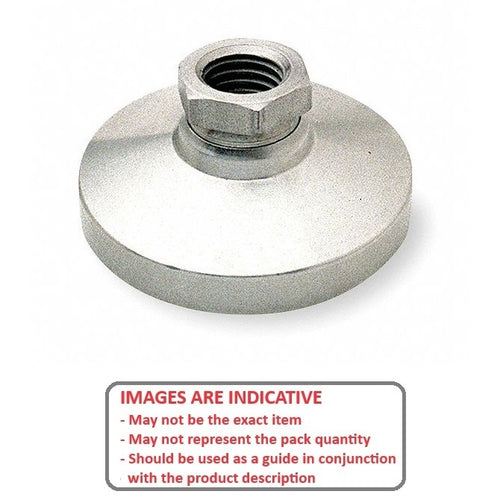

Mounts - Levelling Socket - Standard - 316 Stainless316 Stainless Standard Levelling Socket Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
63.5
mm
(Equiv. 2.5 in.) - Foot Height (C)
31.8
mm
(Equiv. 1.252 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 7.94 mm
- Load Rating 2720 Kg
- Hex Flats (B) 22.23 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 6103K156
- MLF2720159CS6
- HVL-2SS
- HVL2SS
- LSS2
- LSS-2
