MSM-159C-102-CGC - Datasheet

MBA

Category Information

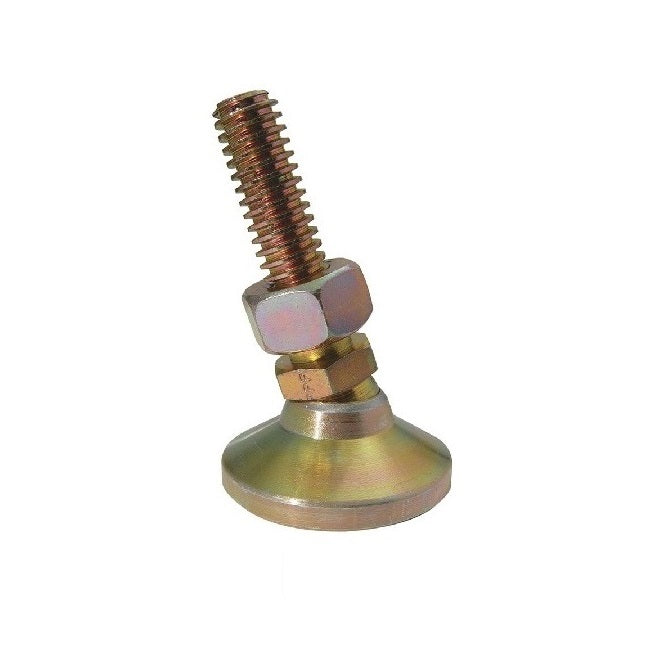

Mounts - Levelling Studded - Swivel - Standard - Gold Chromate

Gold Chromate Standard Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size (A) : 5/8-11 UNC (15.88mm)
  • Base Diameter (D) 63.5 mm
  • Foot Height (C) 31.8 mm
  • Thread Length (F) 101.6 mm
  • Base Height (E) 7.94 mm
  • Overall Height 133.4 mm
  • Load Rating 2720 Kg
  • Finish Gold Chromate
  • Hex Flats (B) 22.225 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® TL-30
    • TL30
    • MSM2720159CLG
